Microscope EUROMEX Oxion for bright field OX.3015

Price: 1 859.00 EUR / 6 418.74 Lt.

Order

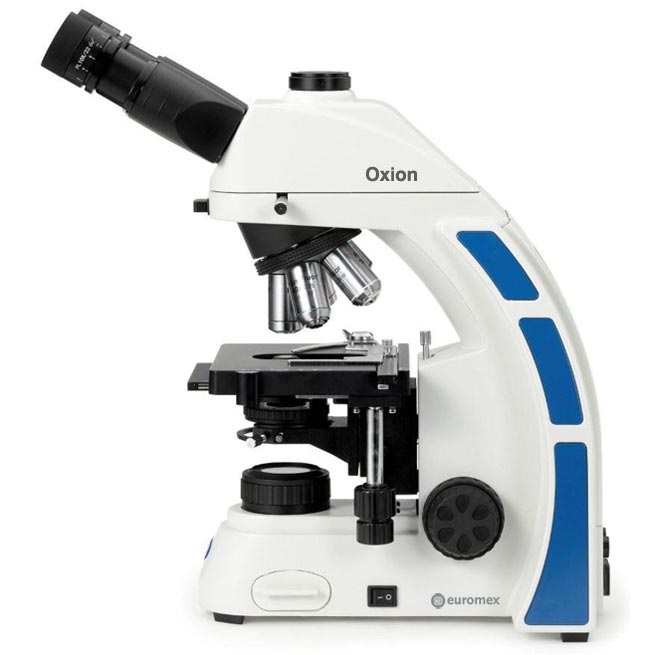

Euromex Oxion OX.3015 trinoculair brightfield microscope ?
The Oxion series was specifically designed for applications in the life sciences, in addition, the longevity of the device has been envisaged.?The result is a modern, robust and high-quality microscope, which is perfect for everyday use.?It is equipped with excellent optical and mechanical components.?The production methods for this device have been optimized so that the device has an excellent price-performance ratio.
?
Infinity color corrected optical system
?
The head of Oxion has a unique swivel design that allows easy adaptation to the eye level of the user.?Compared to conventional microscopes, provides greater by 40 mm viewing height.?The Siedentopf tube is standard with 10x HWF plan eyepieces equipped with 22mm field of view and diopter adjustment.?The pupil distance can be set between 50 and 75 mm.?The eyepieces can be fixed in the tube.?The head of Oxion has an ergonomic viewing angle of 30 ?.
?
A microscope with thoughtful details
?
The computer-optimized design of Oxion guarantees high stability and longevity.?The result is an advanced, all-ergonomic microscope.Below the head is the slot for an optional polarizer.?A handle on the back of the stand allows easy transportation of the microscope.Make the 150 x 140 mm mechanical table with an XY adjustment range of 76 x 50 mm and the reverse nosepiece for up to 5 lenses that Oxion to a microscope for demanding laboratory works.?Ergonomically placed adjustment knobs reduce the fatigue of the user during long work at the microscope.?The shape of the stand has been specially designed to exceed today's standards.?The height-adjustable Abbe condenser NA 1.25 can be equipped with corresponding slides that provide an economical solution for phase contrast and darkfield applications.?The Oxion can be equipped with a hot stage.?The temperature of the table can be adjusted to up to 50 ? Celsius, the adjustment is performed by a PID controller.?Higher temperatures can be reached upon request.?The adjustable 3 Watt LED illumination provides the user with a comfortable light source with constant color temperature and long life.?The K?hler illumination allows highest contrast at maximum achievable ed ?sungsverm?gen optics.?In addition to low power consumption with no heat generation, the high-power LED has an extremely long life.?The 100 watt mercury vapor lamp has a wide range of wavelengths for use with a wide variety of fluorescent dyes.?The co-axial illumination can accommodate up to 4 filter modules with the corresponding to the excitation and emission filters at the same time.

Eyepieces ?Paired DIN KHWF 10x/22 eyepieces, also suitable for people wearing glasses. Both eyepieces are equipped with dioptre adjustment
Head???360?rotatable binocular with ergonomic 30?inclined swiveling Siedentopf tubes with upper and lower position. Adjustable interocular distance from 50 to 73 mm. Vertical 80/20 photo tube
Nosepiece ?Suitable for 5 objectives, fitted with ball-bearings with inside click stop
Objectives ?Infinity corrected Semi Plan objectives 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100s N.A. 1.25 oil. The S40x and S100x objectives are spring-mounted
Stand??With coaxial coarse - and fine adjustments with graduation scale. Adjustable specimen protection and adjustable tension for coarse adjustment knob
Stage??Mechanical?flat-top 150 x 140 mm stage fitted with ball-bearings and with 76 x 50 mm X and Y-translation, 0.1 mm scale and coaxial controls. Detachable specimen holder
Condenser??In height adjustableAbbe condenser N.A. 1.25 with iris diaphragm
Illumination ?3 Watt LED adjustable K?hler illumination with field diaphragm and built-in power supply for 85-240 Volt operation
Packing?
With dustcover in styrofoam case. Weight approximately 10kg
