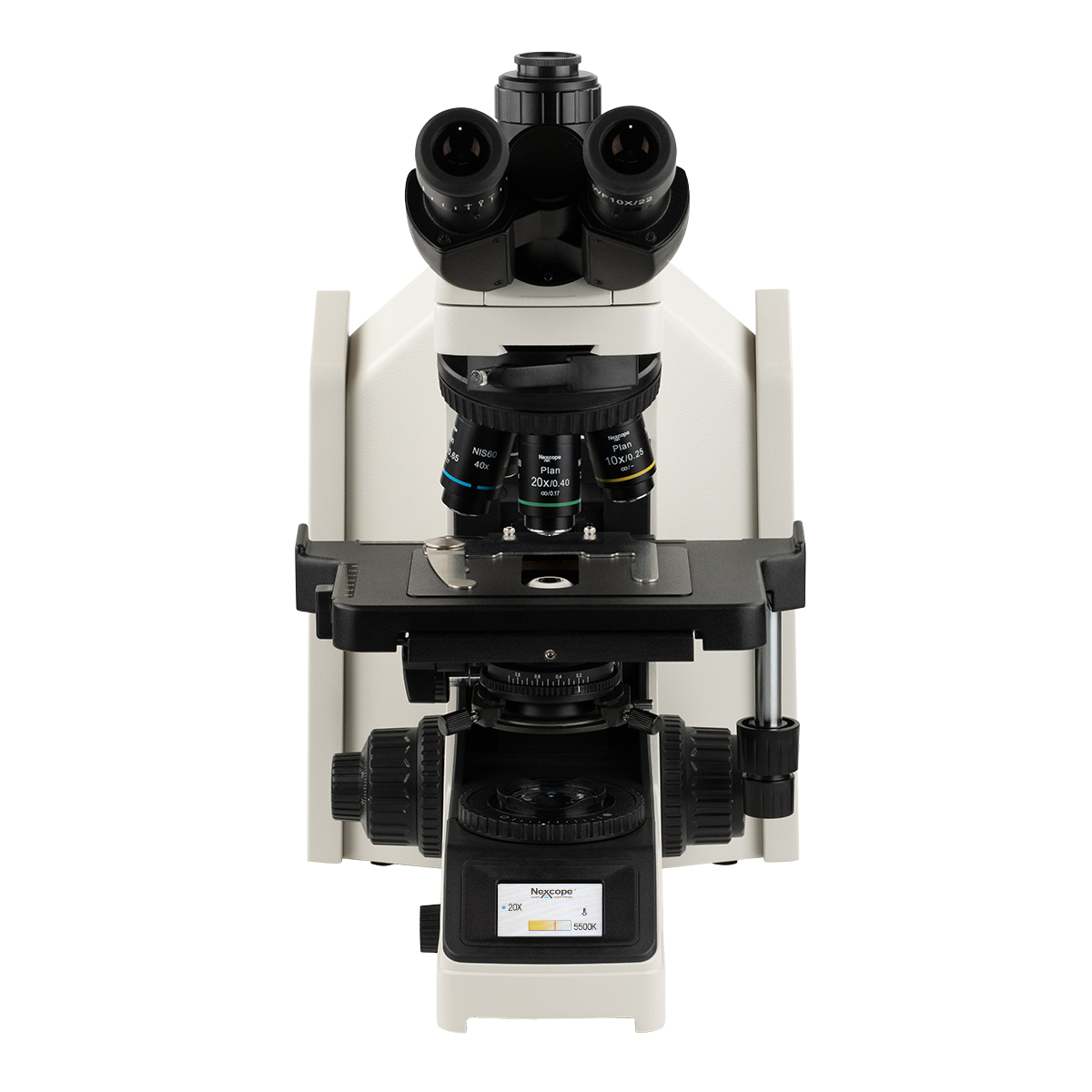

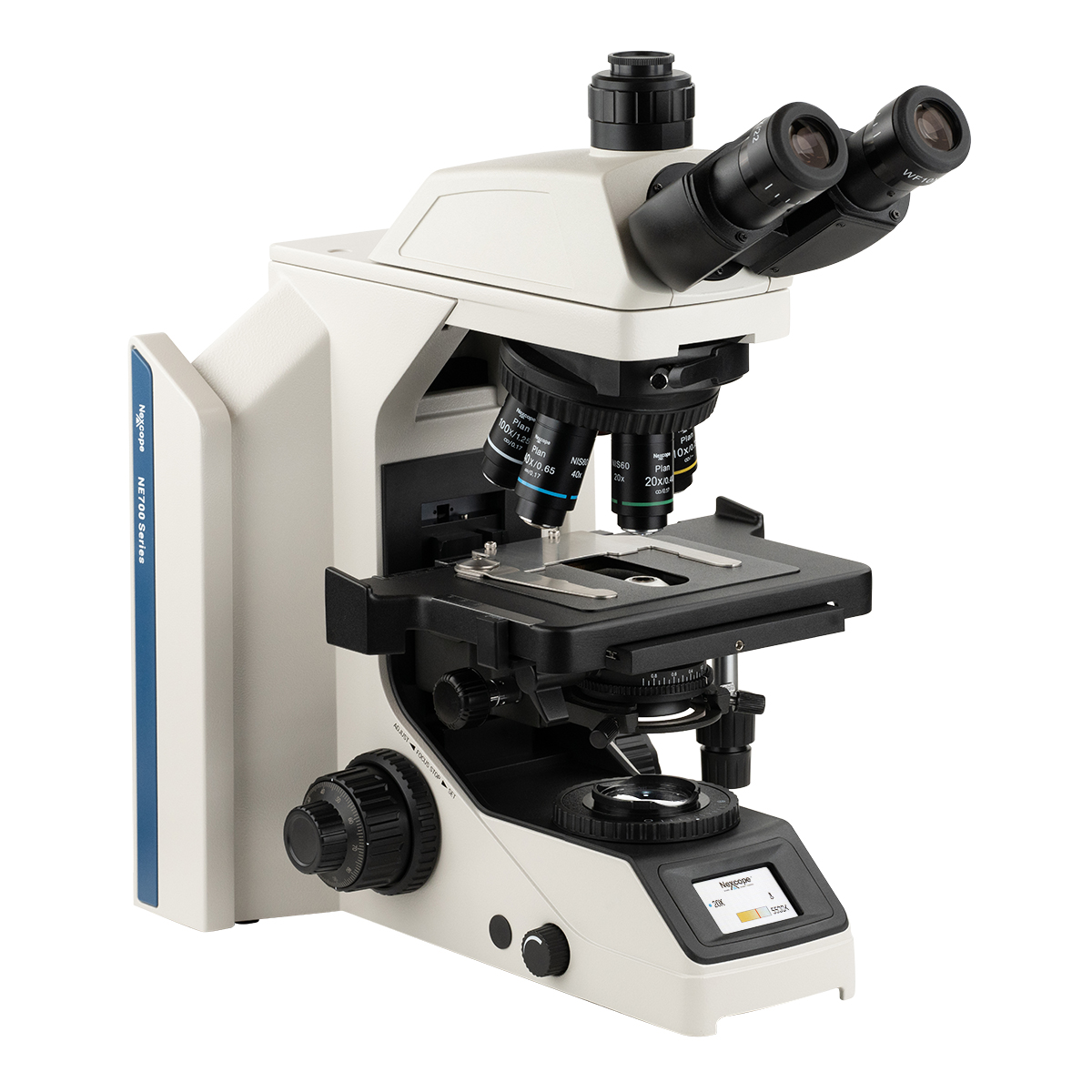

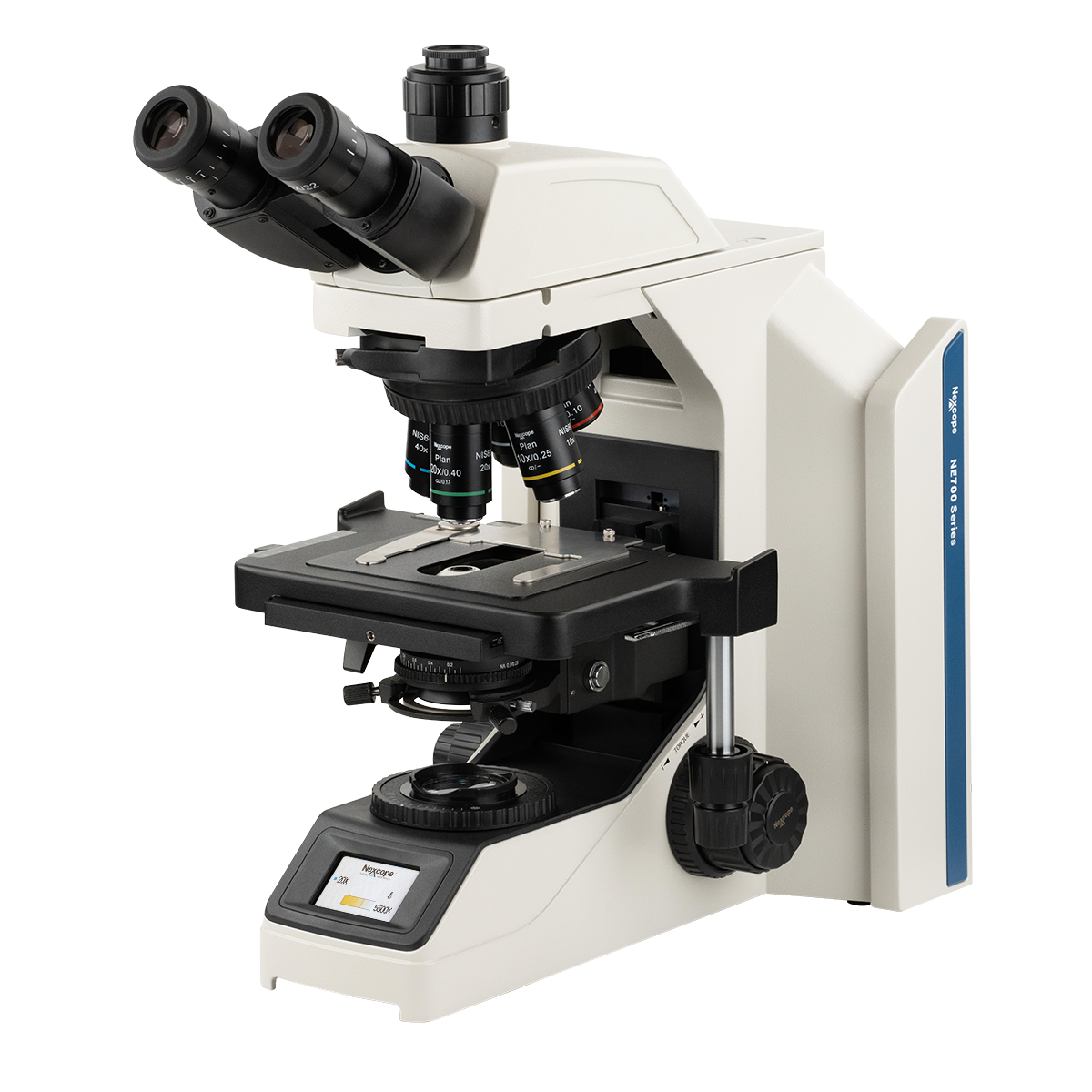

Microscope Nexcope NE700

Price: 2 399.00 EUR / 8 283.27 Lt.

Order

The Nexcope NE700 microscope sets a new high standard for cost-effective, clinical quality microscopes. The NE700 has been designed to meet the stringent standards of medical and veterinary diagnostic laboratories. This microscope is intended for use in research in veterinary medicine, bacteriology, immunology, pharmacy and other scientific fields, in analytical laboratories.

It is equipped with a trinocular attachment that allows you to connect any microscope camera with a C-mount mount in an independent observation path. The trino tube has the ability to adjust the height, allowing you to synchronize the focus on the camera sensor and glasses. The microscope has a bright optical system corrected to infinity with objectives with an optical length of 60 mm (NIS60) with 4x, 10x, 20x, 40x and 100x magnifications.

The NE700 microscope is equipped with SUPER LED 3W illumination with a unique adjustment of the light bar temperature from 3000K to 7000K, which allows the user to adjust the light shade from halogen (yellow) through different shades of LED to full white.

The microscope has automated lighting that adjusts its power according to the currently selected objective. The user also has the option of manually adjusting the brightness of the lighting and remembering the settings. LED lighting with a power of 3 provides enough light at the entire magnification range, and the long life of the light source - over 20,000 hours - does not require its replacement during the operation of the microscope.

The LCD front panel allows you to manage the following functions:
- automatic or manual control of lighting intensity predefined by the user,
- LED color temperature control from 3000 K to 7000 K,
- visualization of light intensity,
- automatic identification of the used lens and magnification,
- sleep function, which turns off the lighting after a user-programmed time of inactivity.

Technical parameters in standard configuration:

10x /22 mm wide field eyepieces.
Siedentopf type trinocular head, inclined 30 degrees, adjustable interpupillary distance in the range of 47-78 mm, light splitting 50/50
The third optical path, with the possibility of adjusting the distance of the sensor from the plane of the preparation (magnification factor 0.5x).
Objectives corrected to infinity, 60 mm optical length, planachromatic: 4x NA 0.1, 10x NA 0.25, 20x NA 0.40, 40x NA 0.65, 100x NA 1.25 ( LWD 1.5 mm, spring-loaded, oil).
Reversed quintuple nosepiece.
Mechanical stage with dimensions: 235x150 mm, with a range of movement of 78 x 54 mm , with a holder for two preparations.
Abbe type NA 0.9/0.25 condenser with adjustable height, with a graduated, iris aperture diaphragm and centering mechanism.
Focusing system: Coaxial macro and micro knobs on both sides. Graduation: 0.001 mm . Range of motion - 28 mm.
A quick-lock mechanism for the upper position of the stage (the knob on the right micro focus knob) and a mechanism for setting a permanent lock using an Allen key.
Bright, long-life 3W LED lighting, automated and user-adjustable.

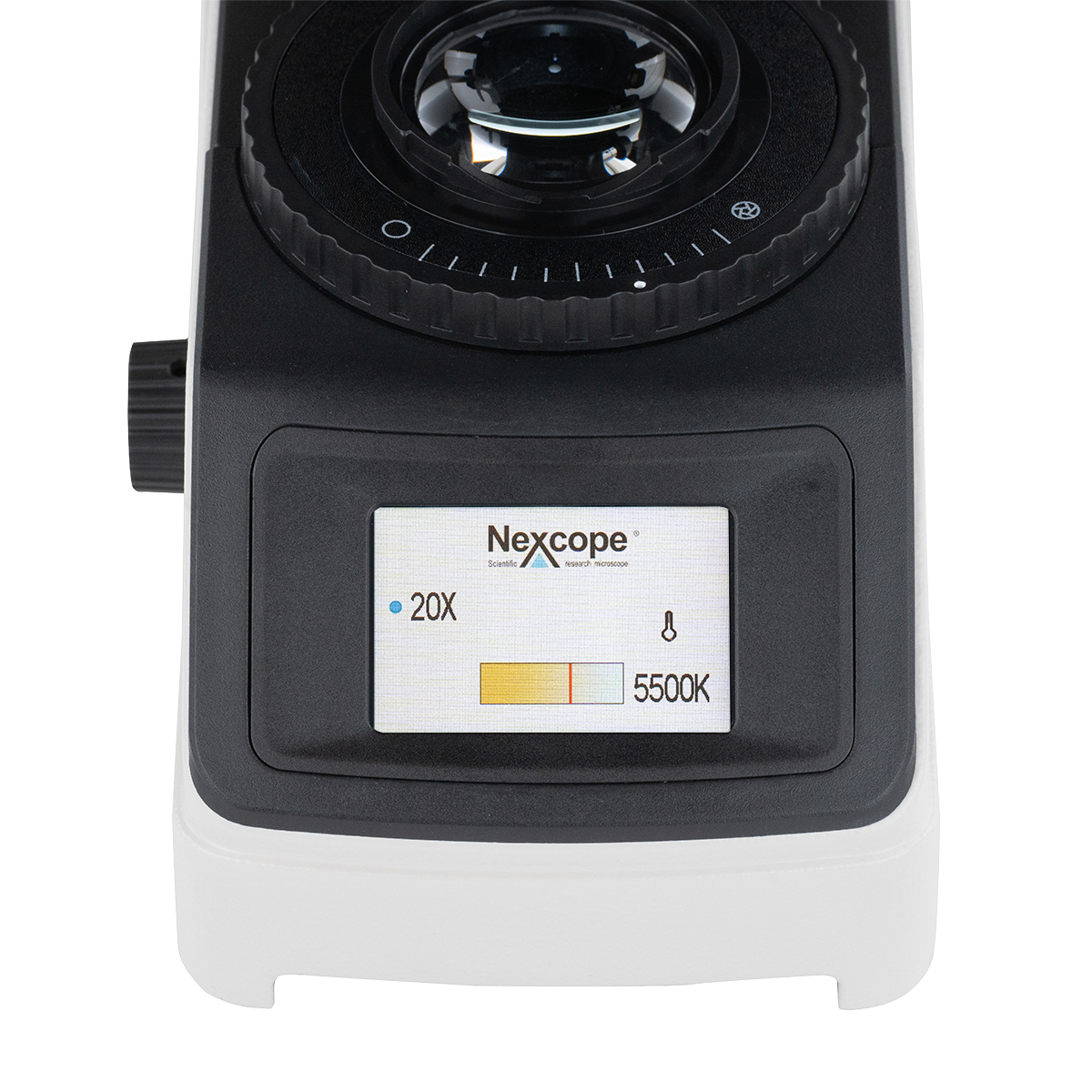

LCD panel on the front of the microscope showing the basic lighting parameters (intensity and color temperature)
Field diaphragm, which allows the lighting to be set according to Koehler`s principle, allowing to increase the contrast of the observed samples.

Possibility of expansion with other elements or assembly in a different configuration, including:

Dry dark field condenser
Immersion dark field condenser.
Phase contrast kit.
Set for simple polarization.
Plan Achromatic 100x objective with water immersion
60x planachromatic objective
