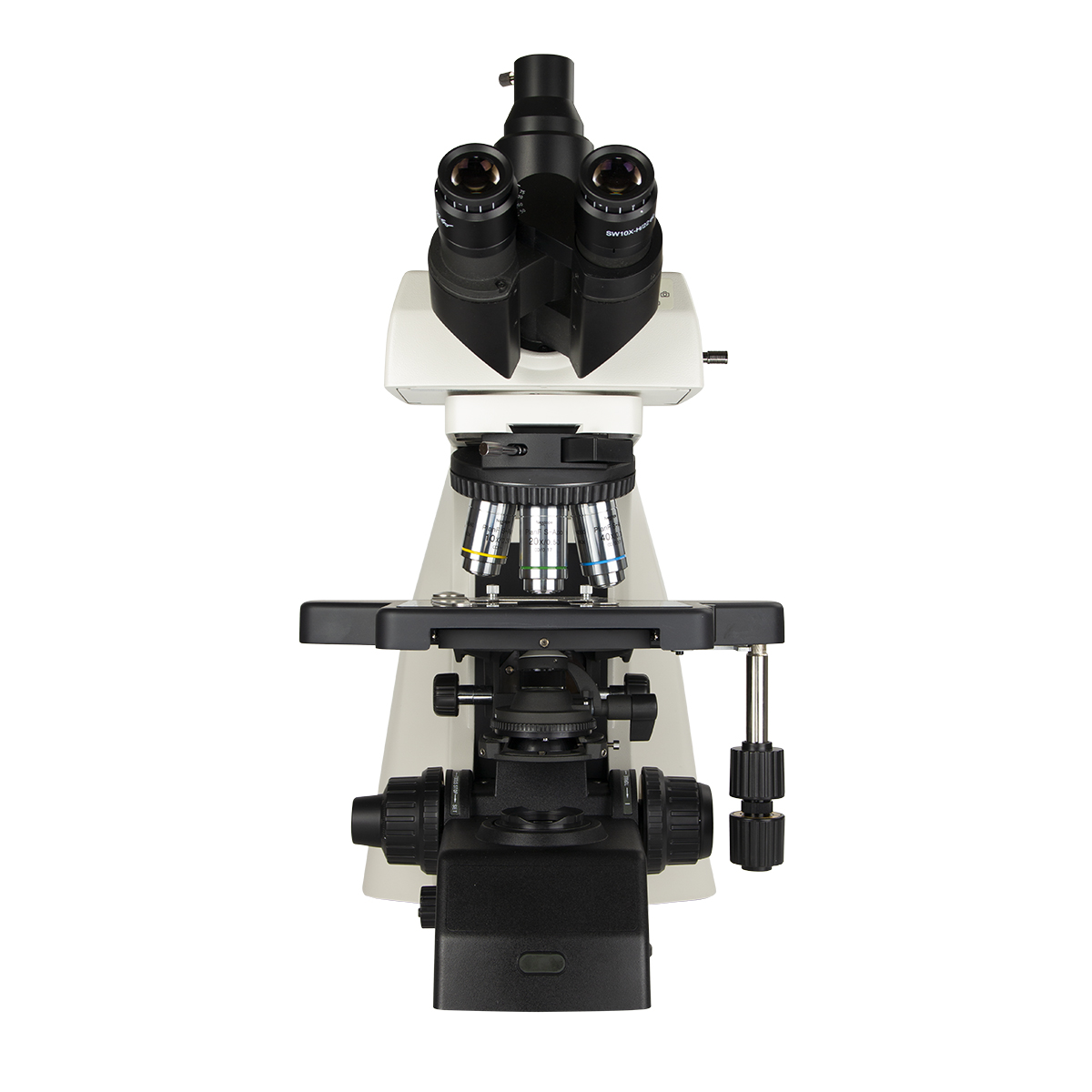

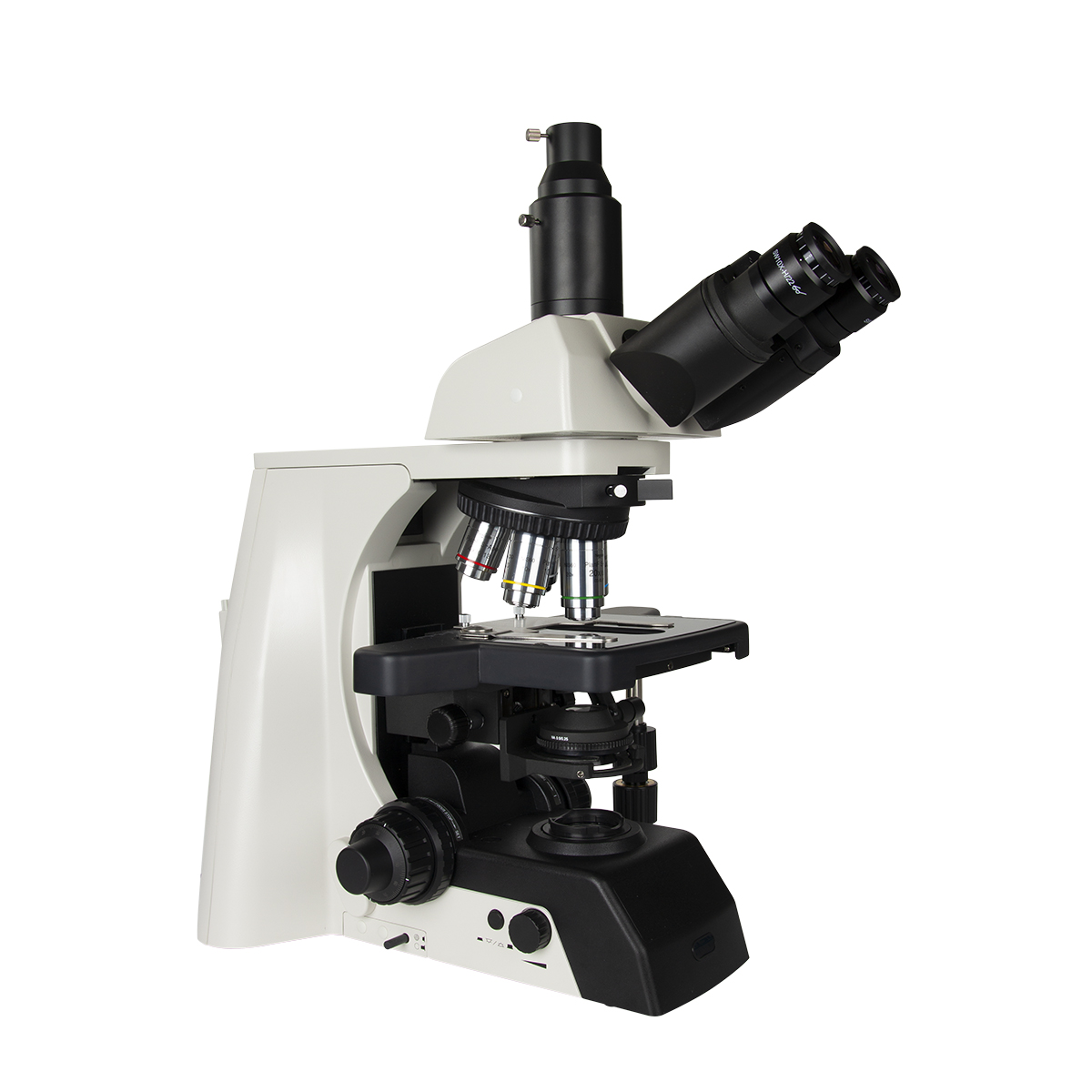

Microscope Nexcope NE910
Price: 4 425.00 EUR / 15 278.64 Lt.
Order
Quantity
A modern biological microscope designed for histopathological applications, as well as for research and clinical applications.
It is equipped with a trinocular attachment that allows you to connect any microscope camera to an independent observation path. The trino tube has the ability to adjust the height, allowing you to synchronize the focus on the camera sensor and glasses. The microscope has an optical system corrected to infinity with lenses with an optical length of 60 mm. This allows for a greater working distance. The microscopic image is clearly sharper and brighter, and the colors are more saturated.
The device is equipped with excellent quality s-apo planachromatic lenses with 4x, 10x, 20x, 40x, 100x magnification
The large table is very practical and user-friendly. It has hidden gears and moves relative to the tripod only in the Y axis, thanks to which valuable space on the sides of the microscope is saved. The holder allows you to mount two slides at once and compare them quickly. The table has a sapphire glass insert (Sapphire Cristal Glass Insert), which is resistant to damage.
Thanks to the use of LED lighting (high brightness and long life), the microscope does not heat up. This is especially useful for very long, uninterrupted observations.
The microscope has an Eco function that turns off the light source if it is not used for more than 30 minutes.
The field diaphragm built into the illuminator allows you to set the lighting in accordance with the Koehler principle, i.e. to obtain an image with maximum resolution, brightness and contrast, especially at maximum magnification.
Technical parameters in standard configuration:
Wide field eyepieces 10x /22 mm.
Siedentopf type trinocular head, inclined 30 degree , adjustable tubes in the range of 47-78 mm, light division glasses: third tube: 100:0, 50:50, 0;100 rotated 360 degree .
The third optical path, with the possibility of adjusting the distance between the sensor and the preparation plane
Infinity-corrected lenses, 60 mm optical length, s-apo planachromatic fluorite 4x/0.13 ∞/-, 10x/0.30 ∞/-, 20x/0.50 ∞/0.17, 40x/0.75 ∞/0.17 ( cushioned), 100x/1.30 oil ∞/0.17 ( cushioned)
Rear-facing six-socket turret cup.
Mechanical stage with dimensions: 190 x 152 mm, with a range of movement of 78 x 54 mm, with a holder for two preparations and a socket for the analyzer.
Abbe type NA 0.9/0.25 condenser with a tilting lens with height adjustment, with a graduated, aperture iris diaphragm, centering mechanism,
Focusing system: asymmetric macro and micro knobs located coaxially, fixed with a magnet and interchangeable. Coarse movement - 20 mm per revolution. Fine movement - 0.2 mm per revolution. Graduation: 0.001 mm. Movement range - 35 mm.
A quick-lock mechanism for the upper position of the stage (the knob on the right micro focus knob) and a mechanism for setting a permanent lock using an Allen key.
Bright S-LED lighting with a power of 3W and a long life, with the ability to set the power by the user using the knob.
Eco function saving energy and life of the LED
A field diaphragm that allows you to set the illumination according to the Koehler principle, allowing you to increase the contrast of the observed samples.
Possibility of expansion with other elements or construction in a different configuration, including:
Dark field condenser.
Polarization kit (polarizer and analyzer)
Compensators (wave-wave, quarter-wave, quartz wedge)
Phase contrast kit.
Lens Plan 2x/0.06 ∞/-
lens Plan 20x/0.4 ∞/0.17
lens Plan 60x/0.80 ∞/0.17
lens Plan 100x/ 1.1 water
