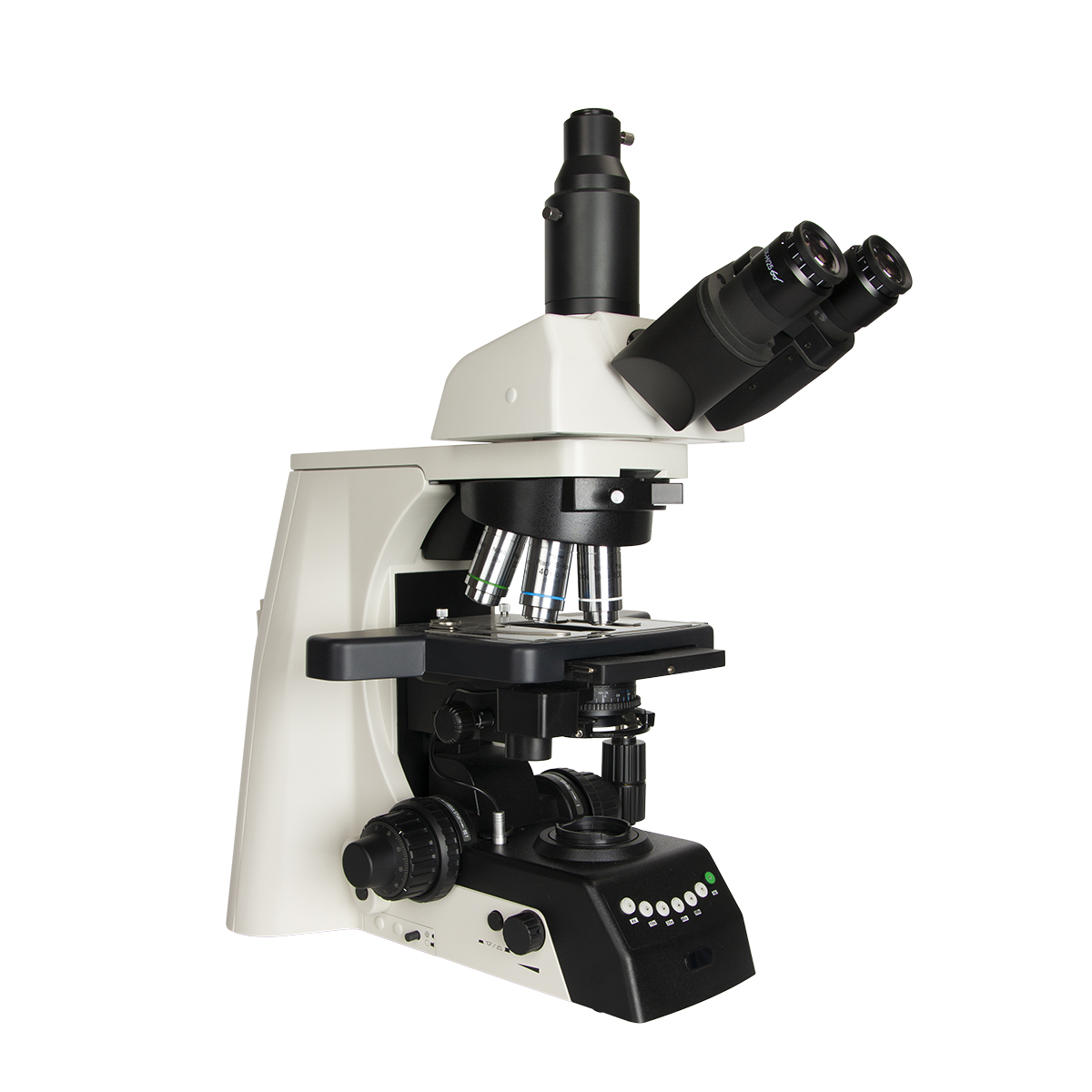

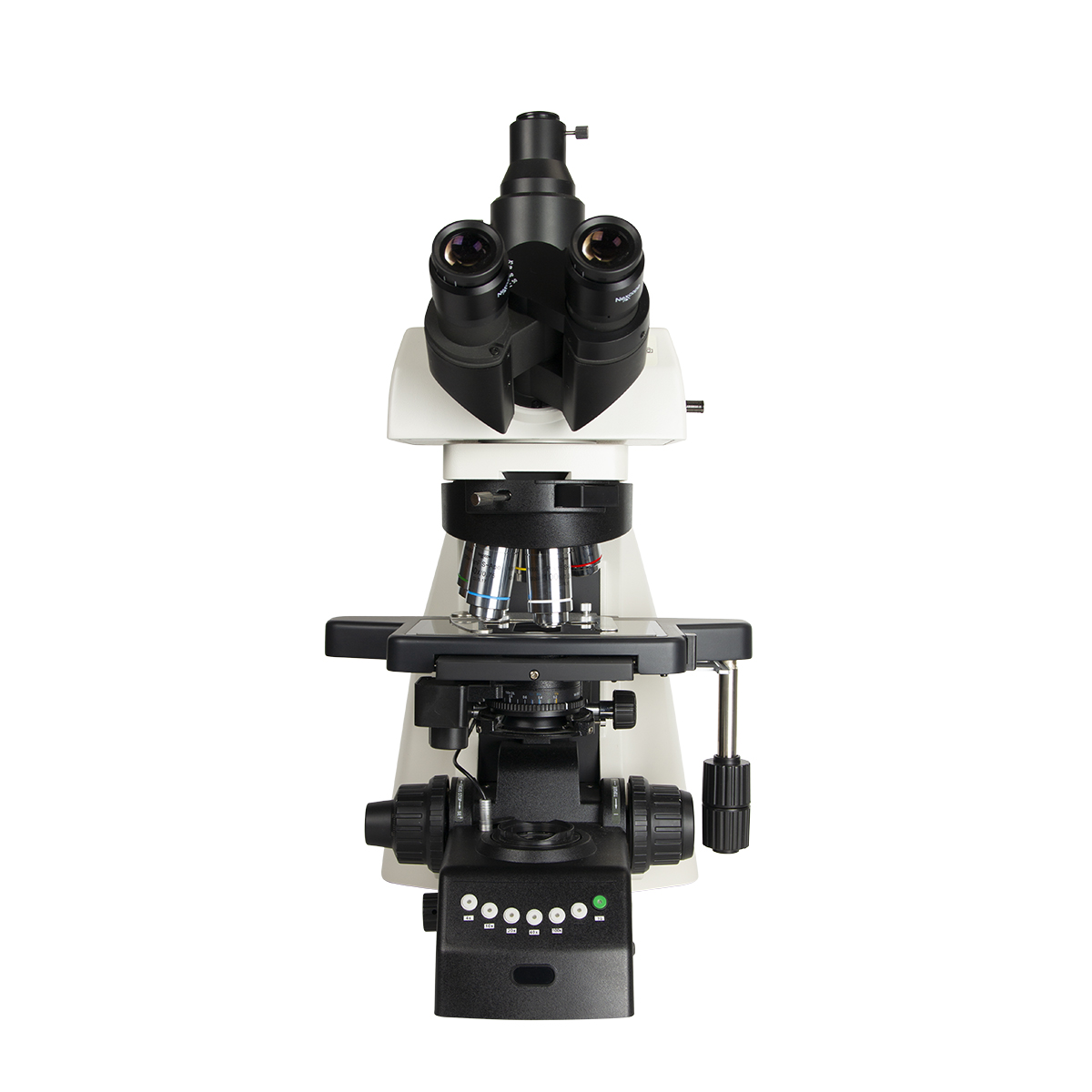

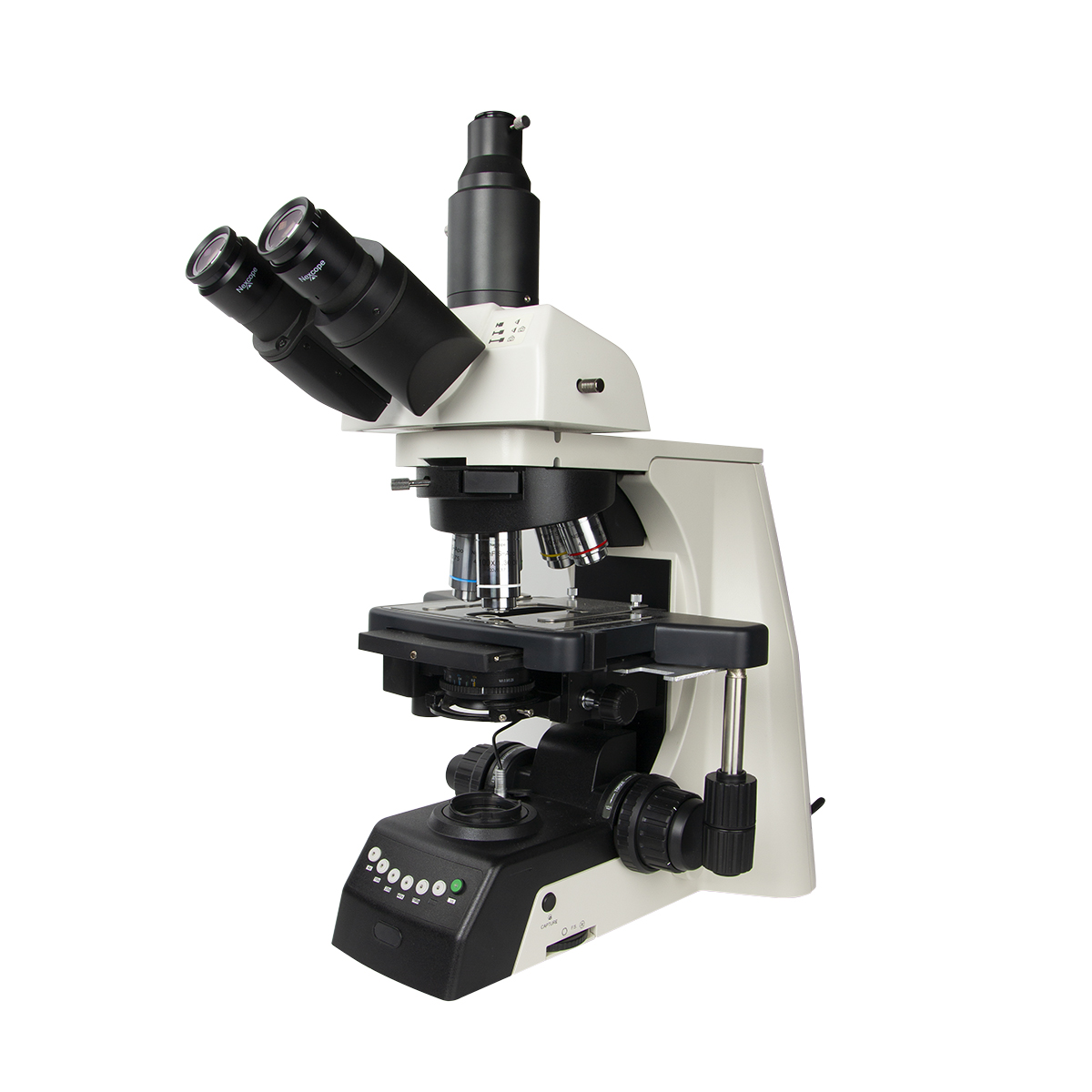

Microscope Nexcope NE730
Price: 7 115.00 EUR / 24 566.67 Lt.
Order
Quantity
An automated, modern biological microscope designed for histopathological applications, as well as for research and clinical applications.
It is equipped with a trinocular attachment that allows you to connect any microscope camera in an independent observation path. The trino tube has the ability to adjust its height, allowing you to synchronize the focus on the camera sensor and eyepieces. The microscope has an optical system corrected to infinity with objectives with an optical length of 60 mm. This allows for a greater working distance. The microscopic image is clearly sharper and brighter, and the colors are more saturated.
The device is equipped with excellent quality s-apo planachromatic objectives of 4x, 10x, 20x, 40x, 100x magnification
The large table is very practical and user-friendly. It has hidden gears and moves relative to the tripod only in the Y axis, thanks to which valuable space on the sides of the microscope is saved. The holder allows you to mount two specimens at the same time and compare them quickly. The table has an insert made of sapphire glass (Sapphire Crystal Glass), which is resistant to scratches.
Thanks to the use of LED lighting (high brightness and long life), the microscope does not heat up. This is especially useful for very long, uninterrupted observations.
The microscope has an automated nosepiece. The precision stepper motor allows you to change objectives by pressing a button. You can quickly switch between two pre-selected objectives. The nosepiece allows the automatic selection of the amount of light to the lens used. In addition, the microscope has an automated condenser, thanks to which, depending on the selected lens, the upper condenser lens is introduced into the optical path.
The field diaphragm built into the illuminator allows you to set the lighting in accordance with the Koehler principle, i.e. to obtain an image with maximum resolution, brightness and contrast, especially at maximum magnification.
Technical parameters in standard configuration:
Wide field eyepieces 10x /25 mm.
Siedentopf type trinocular head, inclined 30 degrees, adjustable interpupillary distance in the range of 47-78 mm, light division between eyepieces and third tube: 100:0, 50:50, 0;100 rotatable 360 degrees.
The third optical path, with the possibility of adjusting the distance between the sensor and the preparation plane
Infinity-corrected objectives, 60 mm optical length, s-apo planachromatic fluorite 4x/0.13 ∞/-, 10x/0.30 ∞/-, 20x/0.50 ∞/0.17, 40x/0.75 ∞/0.17 (spring-loaded), 100x/1.30 oil ∞/0.17 (spring-loaded)
Automated nosepiece, sixtuple, rear facing. Objectives are changed using the buttons on the microscope stand
Mechanical stage with dimensions: 190 x 152 mm, with a range of movement of 78 x 54 mm, with a holder for two preparations and a socket for the analyzer.
Automated Abbe NA 0.9/0.25 type condenser with tilting lens with height adjustment, with graduated, aperture iris diaphragm, centering mechanism.
Focusing system: asymmetric macro and micro knobs located coaxially, magnetically fastened and interchangeable according to the user`s preferences. Coarse movement - 20 mm per revolution. Fine movement - 0.2 mm per revolution. Graduation: 0.001 mm. Movement range - 35 mm.
A quick-lock mechanism for the upper position of the stage (the knob on the right micro focus knob) and a mechanism for setting a permanent lock using an Allen key.
Bright S-LED lighting with a power of 3W and a long life, with the ability to set the power by the user using the knob.
A field diaphragm that allows you to set the illumination according to the Koehler principle, allowing you to increase the contrast of the observed samples.
Possibility of expansion with other elements or construction in a different configuration, including:
Dry dark field condenser (NA 0.7-0.9)
Immersion dark field condenser (NA1.25-1.36)
Polarization kit (polarizer and analyzer)
Polarization compensators (wave plate, quarter wave plate, quartz wedge)
Phase contrast kit.
Epifluorescence kit.
Lens Plan 2x/0.06 ∞/-
lens Plan 20x/0.4 ∞/0.17
lens Plan 60x/0.80 ∞/0.17
lens Plan 100x/ 1.1 water
