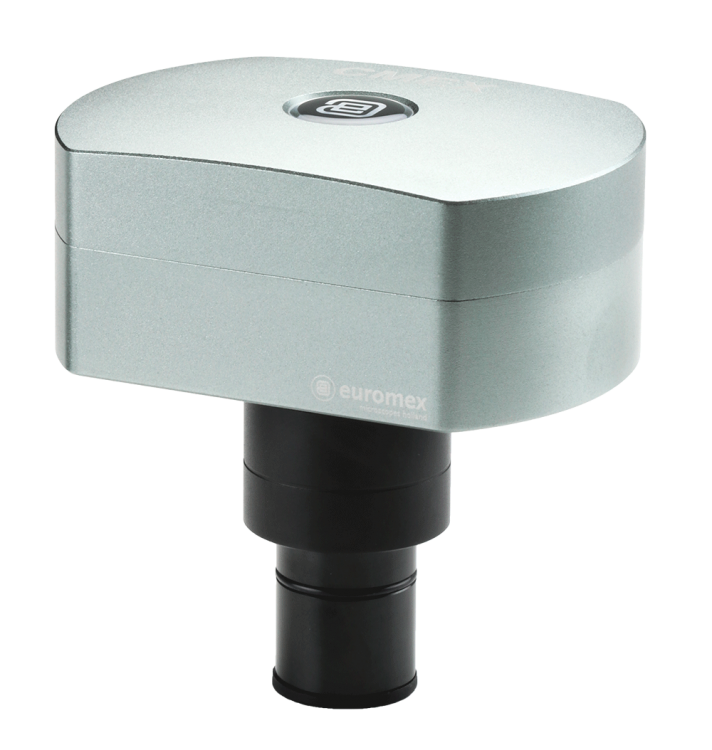

CMEX-10, 10.0 Mpix digital USB-2 camera with 1/2.5 inch CMOS sensor
Price: 555.00 EUR / 1 916.30 Lt.
Order
Quantity
The Euromex CMEX-10 digital 10 Mpix USB-2 CMOS camera and ImageFocus 4 analysing software are the perfect solution for modern digital microscopy for teaching, basic industrial and live sciences applications and for demanding amateurs. Suitable for biological and metallurgical microscopes as well as for stereomicroscopes
Sensor: 1/2.3" CMOS
Pixels: 10 megapixels
Output: High resolution 3856 ? 2764 pixels format
Pixel Size: 1.67 μm ? 1.67 μm
Frame Rate:
@ 3856 x 2764 pixels up to 3 f/s depending camera settings and illumination
@ 1832 x 1370 pixels up to 8 f/s depending camera settings and illumination
@ 916 x 680 pixels up to 28 f/s depending camera settings and illumination
Color filter: RGB
Mount: C/CS-mount
ADC: 10 bits
Color depth: 24 bits
Signal/Noise ratio: 42 db
Dynamic range: 65 db
Sensitivity: > 1.3 V/lux @ 550 nm
Exposure: Automatic or manual from 1 ms to 300 ms
Interface: High Speed USB 2.0 (480 Mb/s)
Non-compressing real-time image data
High sensitivity camera features, suitable Bright Field, Dark Field, Phase Contrast, Epi-illumination
Very convenient to use, fits a standard 23.2 mm trinocular tube or eyepiece tube
Supplied with USB 2.0 cable
To be used with Euromex ImageFocus 4 software, which can be freely downloaded.
The software works solely with CMEX-1, CMEX-3, CMEX-5, CMEX-10, CMEX Pro 3, CMEX Pro 5, sCMEX-1, sCMEX-3 and Euromex cooled CCD color camera captured images

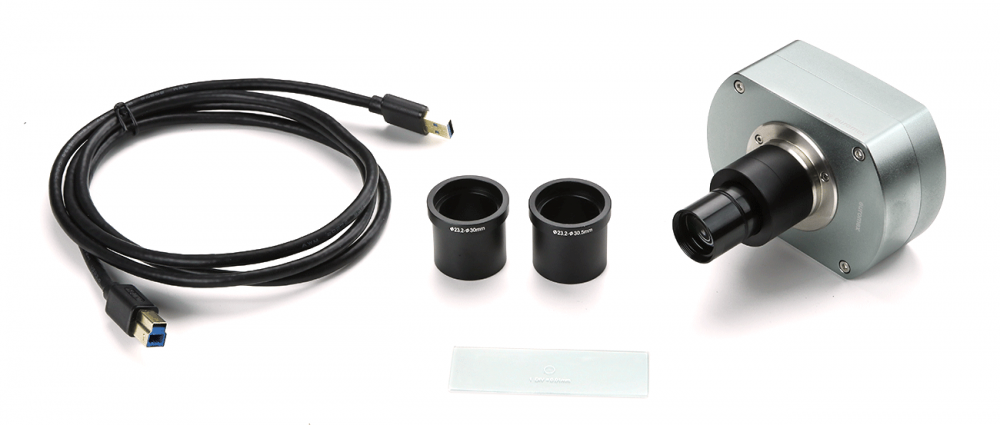

Delivered with 0,5 x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereomicroscopy, 76 x 24 mm calibration 1mm/100 slide, CDROM with ImageFocus 4 software, carton box
Compatible with Microsoft Windows XP, Windows Vista, Windows 7 and Windows 8,? 32- and 64 bits
