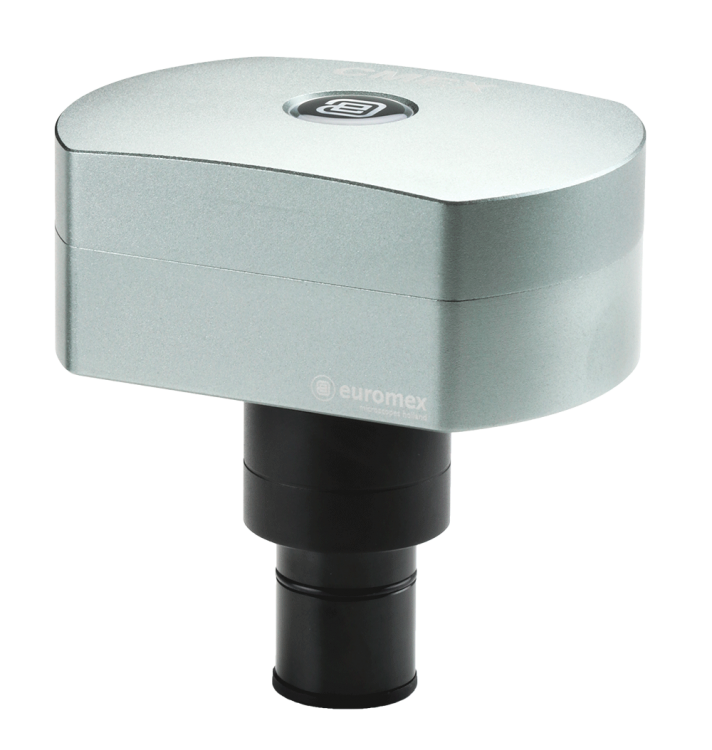

CMEX-18 Pro digital 18 Mpix USB-3 CMOS camera
Price: 795.00 EUR / 2 744.98 Lt.
Order
Quantity
The Euromex CMEX-18 Pro digital 18 Mpix USB-3 CMOS camera and ImageFocus Alpha analysing software are the perfect solution for modern digital microscopy for teaching, basic industrial and live sciences applications and for demanding amateurs. Suitable for biological and metallurgical microscopes as well as for stereomicroscopes
Sensor: 1/2.3" CMOS
Pixels: 18 megapixels
Output: High resolution 4912 ? 3684 pixels format
Pixel Size: 1.25 μm ? 1.25 μm
Frame Rate:
@ 4912 x 3684 pixels up to 6 f/s depending camera settings and illumination
@ 2546 x 1842 pixels up to 18 f/s depending camera settings and illumination
@ 1128 x 922 pixels up to 32 f/s depending camera settings and illumination
Color filter: RGB
Mount: C-mount
Signal/Noise ratio: 37 db
Dynamic range: 66 db
Exposure: Automatic or manual
Interface: High Speed USB 3.0
Operation 0 ? 50? C, 30-80 % humidity
Storage temperature -20 to 6? Celsius
Power supply 5V over PC USB port
Housing Zinc-aluminium alloy, 68 x 68 x 45 mm (H)
Non-compressing real-time image data
High sensitivity camera features, suitable Bright Field, Dark Field, Phase Contrast, Epi-illumination
Very convenient to use, fits a standard 23.2 mm trinocular tube or eyepiece tube
Supplied with USB 2.0 cable
?

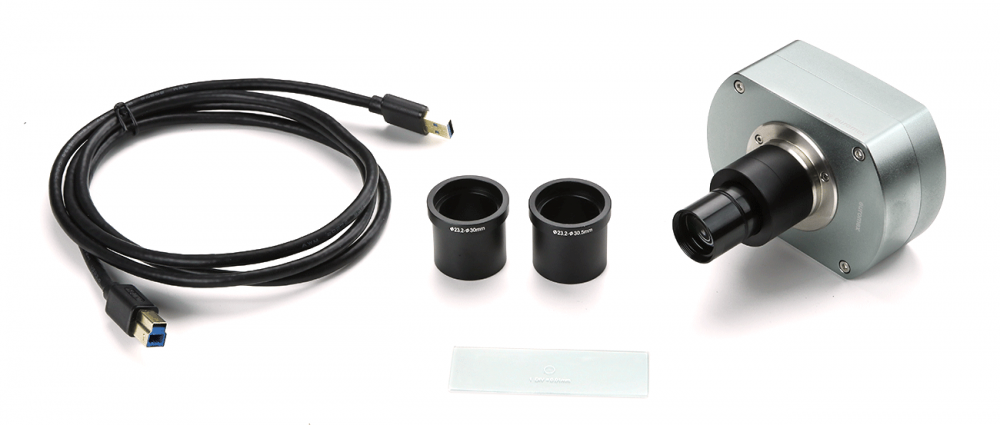

Suplied with 0.5x objective with C-mount, USB 3 cable, 30 and 30.5 mm adapters for
stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), CDROM with ImageFocus Alpha software, carton box
Supplied with ImageFocus Alpha capture and measuring software.
For Windows XP, Vista, Windows7, Windows 8 (32 and 64 bit configurations)
PC requirements: Compatible Intel Core2, 2.8 GHZ or higher, 2 GB, USB-3 high speed
