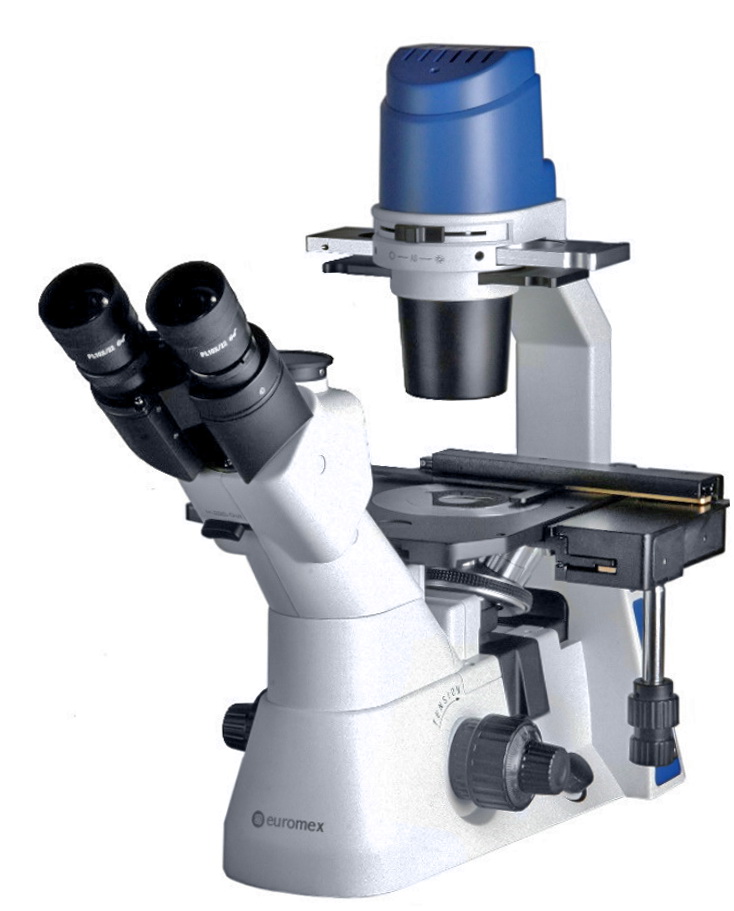

inverted Oxion microscope for phase contrast

Price: 3 939.00 EUR / 13 600.58 Lt.


Order




Quantity



Eyepieces?Pair DIN HWF Plan10x/22
Head?Trinocular with 45? inclined tubes with extended low and high positions for eyepieces and a photo port. One diopter adjustment. Interpupillary distance of 54 to 75 mm. Fixed split bino/trino 80:20
Nosepiece?Revolving quintuple nosepiece on ball-bearings
Objectives?Infinity color corrected long working distance positive Plan Phase contrast 4x/0.10, 10x/0.25, 20x/0.40 and S40x/0.65 IOS objective. Corrected for 1.2 mm glass thickness. All optical parts are anti-fungus treated
Stages?Large stage stage with coaxial mechanical 120 x 78 mm X-Y stage. Delivered with transparent glass insert, a metal insert and a 35 mm Petri dish holder
Condenser?Kohler N.A. 0.30 condenser for 72 mm working distance. With slider for phase contrast rings and slider for 45 mm diameter green interference filter
Focusing adjustment?Coaxial 9 mm coarse and 200 μm fine adjustments, 2 μm precision. Friction adjustment
Illumination?Intensity adjustable 5 W LED with external 12 V 3.3 A power supply
