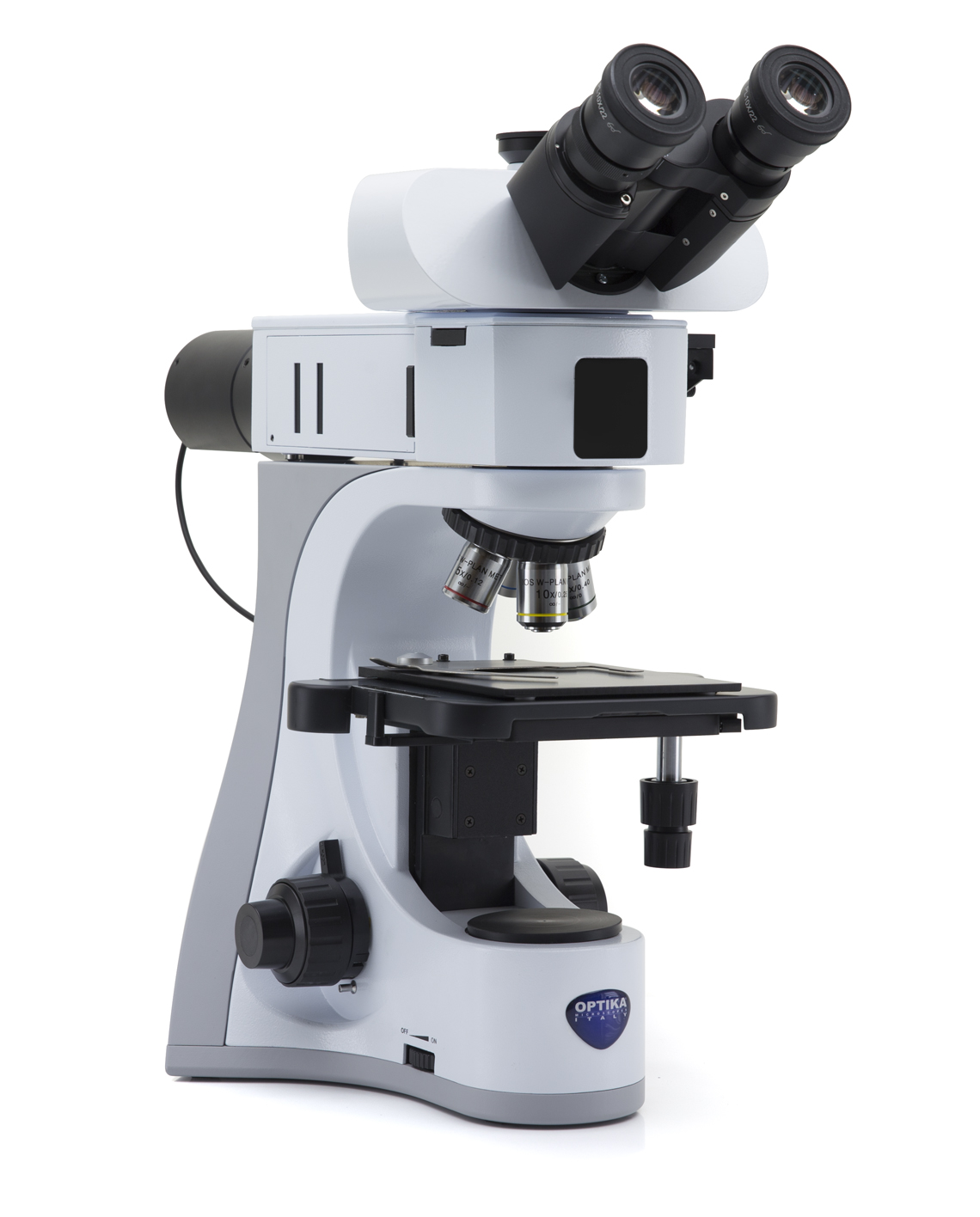

B-600MET - Upright metallurgical microscope
Price: 5 049.00 EUR / 17 433.19 Lt.
Order
Quantity
TECHNICAL SPECIFICATIONS:
Model:
B-500MET
Head:
Trinocular, 30? inclined, 360? rotating.
Eyepiece:
WF10X/22mm.
Objectives:
PLAN IOS MET (no cover slide) IOS 5x/0.14, 10x/0.25, 20x/0.4, 50x/0.7,?100x/0.8 (dry).
Magnifications:
50x, 100x, 200x, 500x, 1000x.
Focusing system:
Coaxial coarse and fine.
Stage:
Double layer with mechanical sliding stage, 175x145 mm, moving range?76x52 mm.
Condenser:
0,7 N.A. swing-out type, with iris diaphgram, centrable and focusable.
Illumination:
OPTIKA X-LED3?system. Brightness is adjustable.
Metallurgical Attachment:
High-power white X-LED3?system with brightness control;?field and aperture diaphragms (centrable). Simple sliding darkfield system.
Filters:
Blue, polarizer & analyzer.
