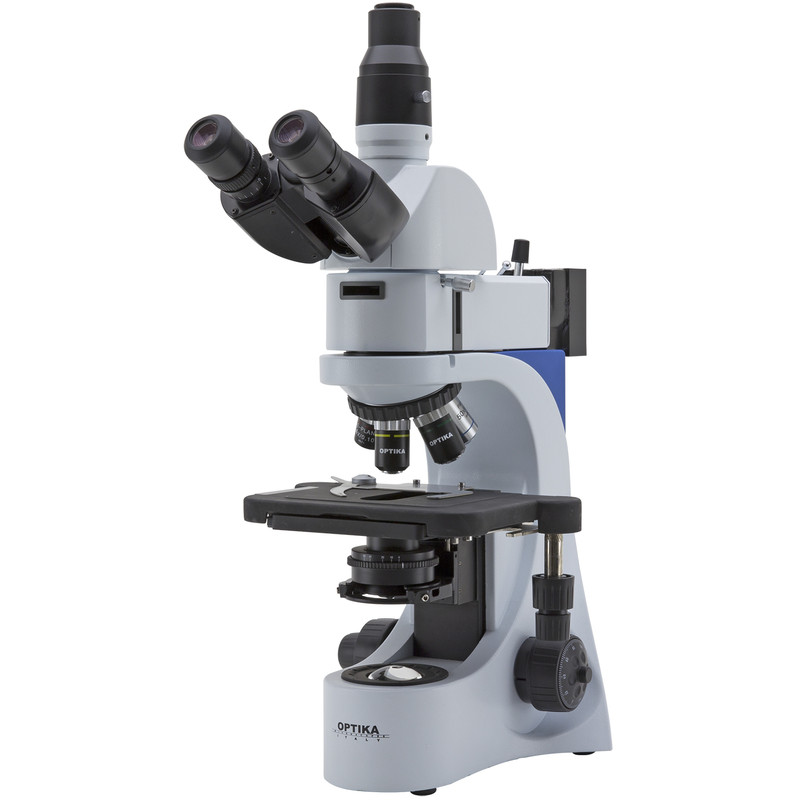

B-383MET - Upright metallurgical microscope

Price: 2 639.00 EUR / 9 111.94 Lt.

Order

Trinocular microscope, metallurgical, IOS objectives ? Technical Specification

Model
B-383MET Head Trinocular, 30? inclined, 360? rotating. Interpupillary adjustment 48-75 mm Eyepieces WF10X/20mm Nosepiece 5-position reversed revolving nosepiece. Ball bearing rotation Objectives PLAN IOS MET 4x/0.10, 10x/0.25, 20x/0.40, 50x/0.75 Focusing system Coaxial coarse and fine Stage Double layer mechanical sliding stage, dimensions 216x150mm, moving range 78x54mm.
Belt-drive in X direction. Glass insert for sample support. Condenser Abbe condenser, sliding-in, N.A. 1.25 with centering system Illumination Transmitted light: X-LED3, with manual brightness control Metallurgical Attachment High-power white X-LED3; field and aperture diaphragms Filters Blue, polarizer & analyzer
