Dino-Lite PodoScope
Price: 709.00 EUR / 2 448.04 Lt.
Order
Quantity

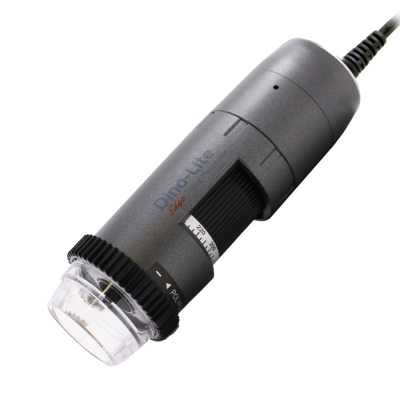

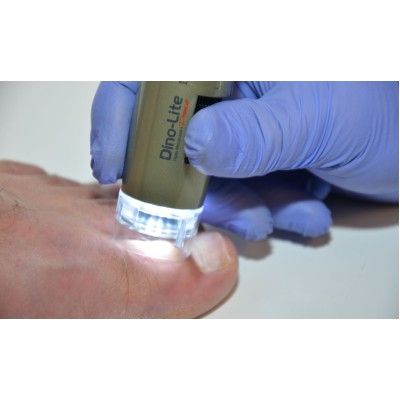

With the PodoScope (MEDL4FW) changes in the skin of the foot and the foot itself can
be documented by taking photographs and making movies as well. These images can be
stored in the file of the patient.

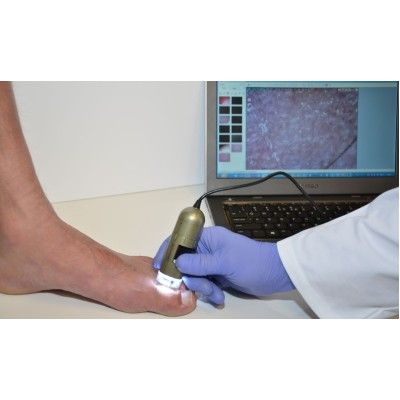

The podiatrist and his patient can view the images in real time on a laptop, Windows
tablet or computer. An external light source is not required in the investigation, since the
PodoScope features built-in LED lights with eight bright white LEDs. The lighting and
PodoScope themselves are powered via the USB port, so that the PodoScope is always
ready and does not depend on batteries
Specifications
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer Yes, linear
Optics
Magnification 10-50x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Housing
Housing material Composite/plastic housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 105 g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, N3C-C- Closed cap, N3C-L- Long cap
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 Medical Devices Regulation (EU) 2017/745
