Dino-Lite EarScope Basic Wireless
Price: 759.00 EUR / 2 620.68 Lt.
Order
Quantity

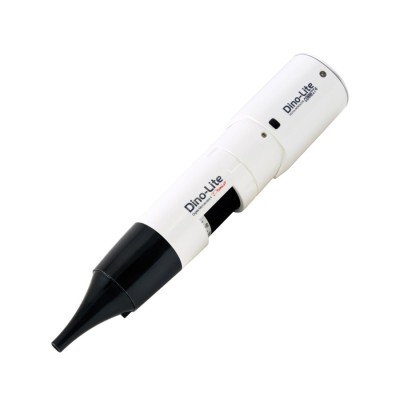

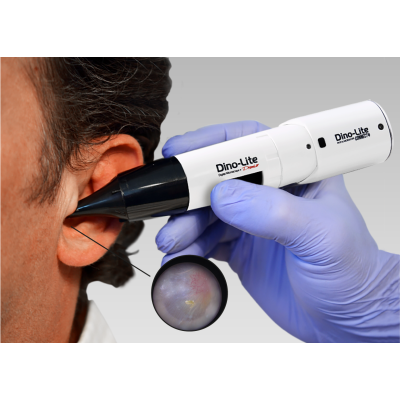

The EarScope Basic Wireless (MEDLW3E) is a compact and safe solution to look at the ear. The cap is detachable for hygienical reasons. The MEDLW3E has a 640x480 resolution and magnification of 20 ~ 30x. This model is delivered with disposable specula of 3, 4 and 5 mm (10 each).
Specifications
Lighting
Light/ LED type White
Number of LEDs 4
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer No
Optics
Magnification 20-30x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution VGA (640x480)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
WiFi Yes
Housing
Housing material Composite/plastic housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 95 g
Cable length 1.8m
Features
Measurement No
Calibration No
Microtouch sensor No
Information
Package contents Microscope, carry pouch, software CD, user manual, 10x 3 mm specula, 10x 4 mm specula, 10x 5 mm specula
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 Medical Devices Regulation (EU) 2017/745
