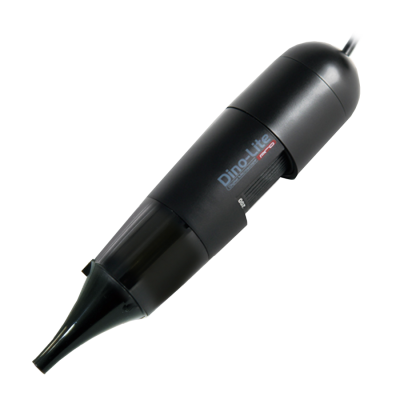

Dino-Lite EarScope Pneumatic
Price: 789.00 EUR / 2 724.26 Lt.
Order
Quantity

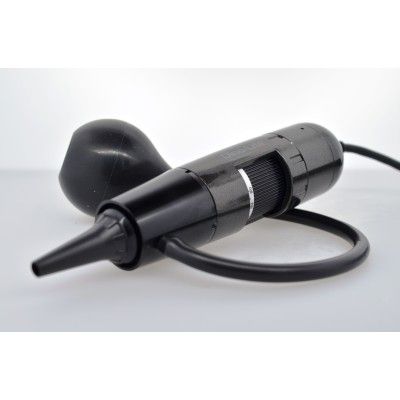

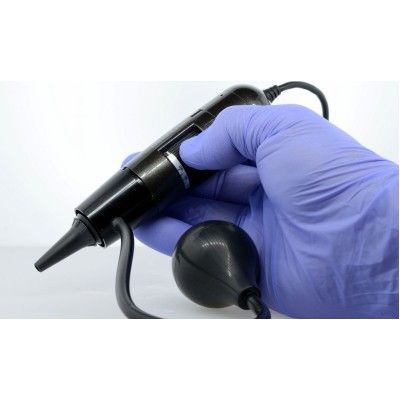

The EarScope Pneumatic (MEDL4EP) is a compact and safe solution for watching the eardrum and the external ear. The MEDL4EP has a 1,3 Megapixel resolution and a magnification of 55 ~ 90x. It comes with a rubber bulb that is squeezed to give a puff of air into the ear canal, which allows the doctor to see how the eardrum moves. This model is delivered with disposable specula of 2,5 and 4 mm (10 each).
Specifications
Lighting
Light/ LED type White
Number of LEDs 6
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer No
Optics
Magnification 55-90x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Housing
Housing material Composite/plastic housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 95 g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, 10x 2,5 mm specula, 10x 4 mm specula
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 Medical Devices Regulation (EU) 2017/745
