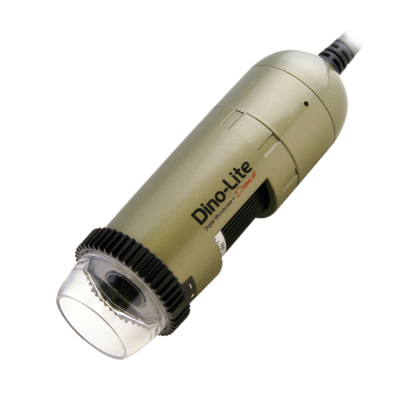

Dino-Lite DermaScope Polarizer 200x
Price: 659.00 EUR / 2 275.40 Lt.
Order
Quantity
The Dino-Lite DermaScope Polarizer 200x (MEDL4DM) has a 1.3 megapixel camera and a magnification of 10 to 70x and 200x. Also this model DermaScope features a built-in and fully adjustable polarization filter to reduce the gloss effect of the skin.
The Dino-Lite DermaScope Polarizer 200x models are special models at a much higher magnification, which is often used for specialized dermatological applications or, for example, the analysis of skin biopsies. Because of the high magnification of this model suspicious nevi can be analysed with more accuracy. In practice, this model is used for the analysis and interpretation of biopsies and other preparations, in short, more for laboratory research.
Specifications
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer Yes, linear
Optics
Magnification 10-70x, 200x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV br/>
Imaging standards DirectShow, UVC
Housing
Housing material Aluminium alloy housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 105 g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, ZT-Z-CC1 cap closure
Accessory range: Dino-Lite DermaScope
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 ? Medical Devices Regulation (EU) 2017/745
