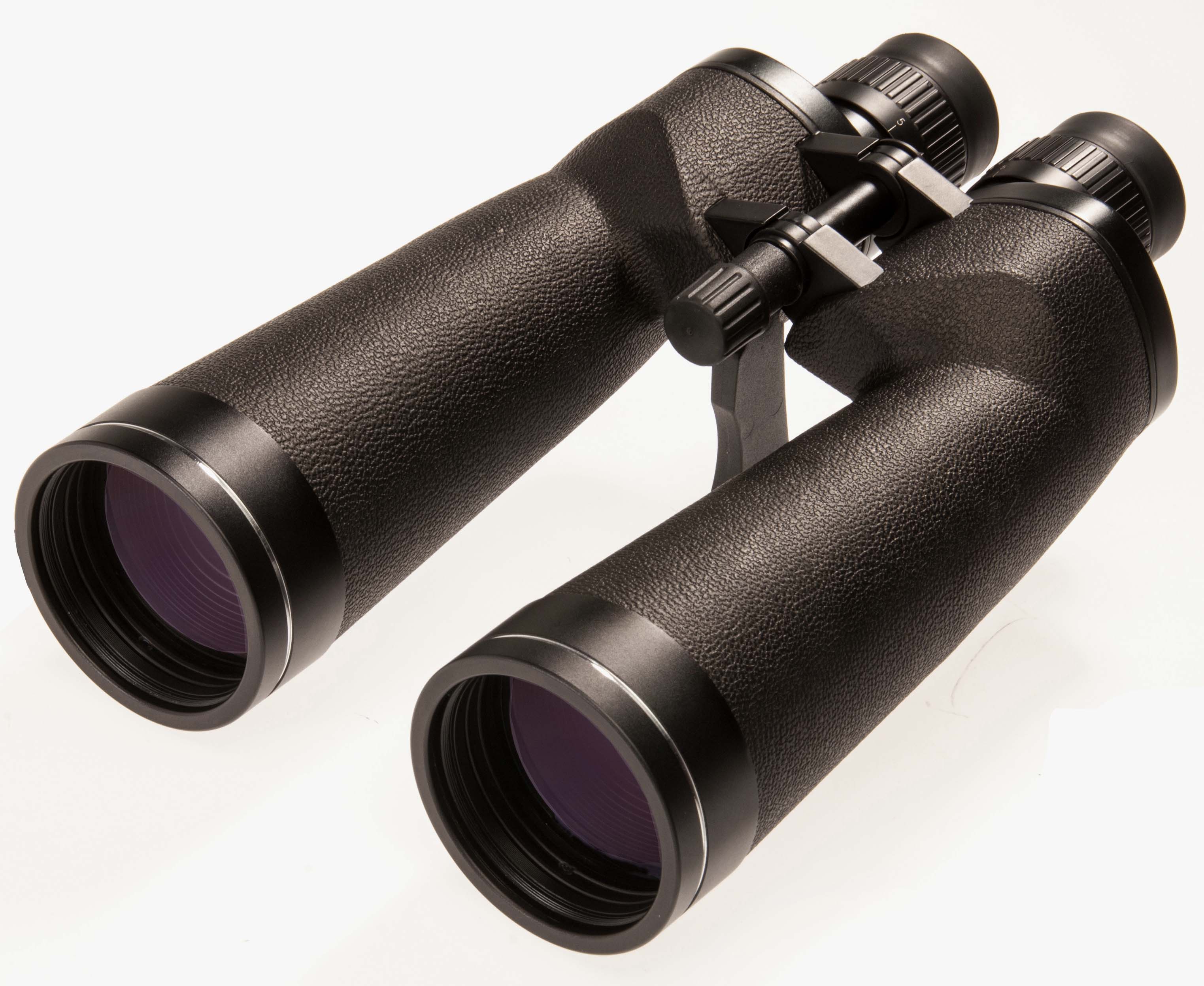

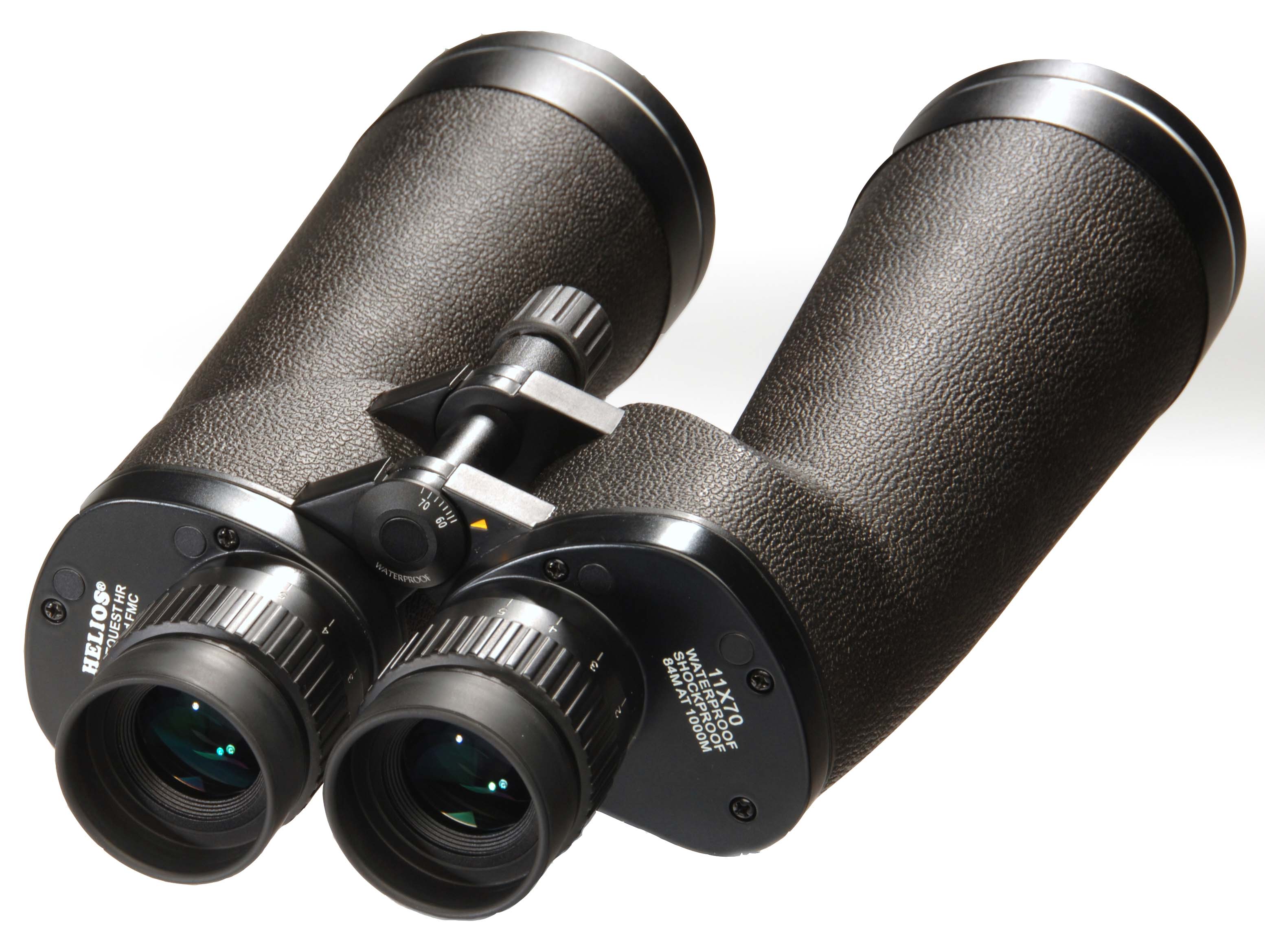

Binocular Helios LightQuest-HR 11x70
Price: 439.00 EUR / 1 515.78 Lt.
Order
Quantity
The new high-end Helios LIGHTQUEST-HR observation binoculars combine top features in mechanical and optical design, with outstanding performance to match!
They are fully waterproof (IPX7 standard, 1m depth for 30 minutes) and nitrogen filled for clear fog-free operation, with individual eyepiece (IF) focusing and designed for medium-to-long-range terrestrial and astronomical observations.?
The body material is constructed from magnesium alloy making the binocular extremely lightweight for an instrument of this size, whilst maintaining a very robust structure. The body is covered in stylish hard textured leatherette.
Features high-index BaK-4 prisms and a fully broadband multi-coated optical system and shockproof caged prisms. The high-resolution optical system features high-transmission lens and prism coatings allowing a massive light throughput equal to or exceeding 90%. The lens coatings have an extremely low level of reflectivity, ensuring the maximum amount of precious light is provided at the eyepiece. Images delivered are vibrant, very flat edge-to-edge and virtually distortion free.
The eyepiece design (11X70: 5 elements/4 groups, 16X70: 8 elements/ 5 groups) features oversized eye lens elements for comfortable viewing. Fold-down rubber eyecups are provided for spectacle-wearers.
Supplied with objective lens caps, eyepiece rainguard, neoprene neck strap and heavy-duty tripod adaptor (attached to binocular in photo), in durable padded fabric carrying case.?
?
Specifications:
ModelHELIOS LIGHTQUEST-HR 11x70 & 16x70
Specification
11x70 ? ? ? ? ? ? ? ? ? ? ? ?16x70 ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
Magnification
11x ? ? ? ? ? ? ? ? ? ? ? ? ? ?16x ? ??
Object Lens Diameter
70mm ? ? ? ? ? ? ? ? ? ? ? ?70mm
Actual Field of View
4.8 degrees ? ? ? ? ? ? ? 4.1 degrees
Field of View at 1000m
84m ? ? ? ? ? ? ? ? ? ? ? ? ? 72m
Exit Pupil Diameter
6.36mm ? ? ? ? ? ? ? ? ? ? 4.37mm
Nearest Focus Distance
20m ? ? ? ? ? ? ? ? ? ? ? ? ? 24m
Eye Relief
23mm ? ? ? ? ? ? ? ? ? ? ? ?20mm
IP Distance Range
56mm-74mm ? ? ? ? ? ? 56mm-74mm?
Dioptric Adjustment Range
-6 to +6 ? ? ? ? ? ? ? ? ? ? ?-10 to +10
Operation temp. Range
+70ºC to -40ºC ? ? ? ? ?+70ºC to -40ºC
Weight
1900g ? ? ? ? ? ? ? ? ? ? ? ?1930g
Dimensions
305x235x87mm ? ? ? ? 298x235x87mm
Product Code
30142 ? ? ? ? ? ? ? ? ? ? ? ? 30143
