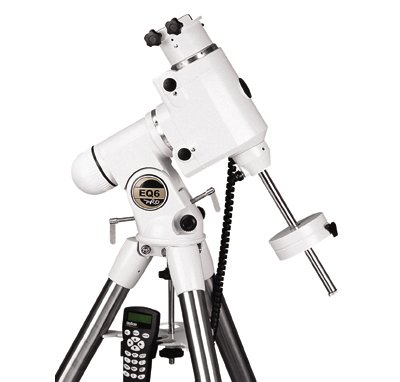

Mount SkyWatcher NEQ6 PRO SYNSCAN GoTo
Price: 1 890.00 EUR / 6 525.79 Lt.
Order
Quantity

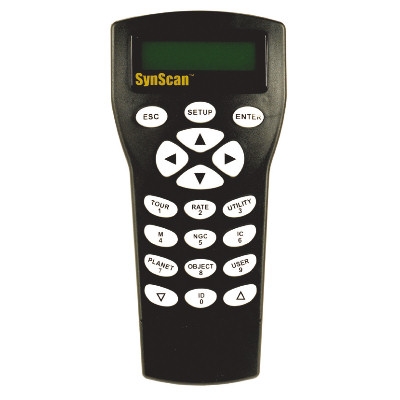

For amateur astronomers seeking superior equatorial control and the ease of a precision computerized GOTO system, the NEQ6 PRO SynScanTM is your answer. The Sky-Watcher NEQ6 PRO SynScanTM is designed with the novice user in mind. With the user-friendly pushbutton hand control, locating and viewing the treasures of the night sky becomes as easy as a walk in the park. The hand control allows you to point the telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to over 42,000 + objects.
Even an inexperienced astronomer can master its variety of features in a few observing sessions. The NEQ6 SynScanTM also comes with features that advanced astronomers can appreciate.
Technical Specifications:
Positioning Accuracy up to 1 arc minute.
Accuracy enhanced by software collimation error (mount mechanical error) compensation.
Stepper motors with 1.8 grad step angle and 64 micro steps driven.
Slewing speed up to 3.4 grad/sec (800X).
Auto Guider Interface for astro-photography.
Guiding speed selectable from 0.25X, 0.50X, 0.75X, or 1X.
Object database containing complete M, NGC, IC etc. catalogues.
Minimal vibration for steady long-exposure photography.
Specifications Power Supply Required: 12 VDC 2Amp Tip positive (not supplied)
Motor Type: Micro step driven 1.8 grad stepper motors
Resolution: 0.144 arc sec (or 9,024,000 steps/rev.)
Slew Speeds: 2X, 8X, 16X, 32X, 64X, 400X, 500X, 600X, 800X
Gear Ratio: 705
Tracking Rate: Sidereal, Lunar, Solar
Tracking Modes: Dual Axis, R.A.
Tracking Alignment Methods: One-star Alignment, Two-star Alignment, Three-star Alignment
Database: 25 user defined objects. Complete M, NGC, and IC catalogues.
Total 42,000 + objects.
Mount Specifications:
Mount Type: German Equatorial Telescope
Mounting: Tube Rings
Slow-motion Control: R.A. & Dec (motor controlled)
Tripod: 2" Diameter Stainless Steel Pipe
Tripod Height: 85-147cm
Tripod Weight: 7.5Kg
Counterweight Shaft Daimeter: 1.8cm
Counterweight Shaft Material: Stainless Steel
Mount Weight: 16Kg
Mount Height: 41cm
Counterweight: Two, 5.1Kg each Counterweight
Extension Bar Supplied with SkyWatcher 45mm and 75mm dovetail saddle plates
Total Weight: 23.5Kgs (counterweight not included)
