SOLAR TELESCOPE Sky Watcher HELIOSTAR-76Ha 76MM F/8.3 H-Alpha
Price: 2 899.00 EUR / 10 009.67 Lt.
Order
Quantity
DOUBLE STACK PERFORMANCE FROM A SINGLE ETALON !!
The very exciting Sky-Watcher HELIOSTAR-76Ha is a safe solar telescope for the observation of active solar prominences and other solar details in the H-alpha band, boasting an exceptional performance of 0.5 Angstrom or better.
The Heliostar 76mm H-alpha Solar Telescope brings a new light to the Sky-Watcher family by offering a dedicated Hydrogen-alpha (Hα) solar telescope to the lineup. Hydrogen-alpha solar observing allows you to unlock the incredible dynamics of surface of the Sun far beyond what a white light solar filter can deliver. From solar prominences on the limb of the Sun (often mistakenly called `flares`), to active sunspot regions, bright plage patches, surface granulation, wispy, snake-like plasma filaments, and more, the star of the solar system is yours to capture in breathtaking views and images. When viewing the Sun in the narrow H-alpha bandwidth, the observer is rewarded with thrilling, awe-inspiring real-time views of our nearest star in it`s full fiery majesty, seething with activity.
The HELIOSTAR-76Ha uses multiple technologies to protect the human eye during solar observation, including an infrared thermal ray reflection film, a special filter to block heat, and a filter to block UV light from entering, blocking stray light that affects observation. It uses a combination of front and rear filters to allow only monochromatic light with a wavelength of 656.28 nanometres emitted by hydrogen atoms to pass through, whilst blocking other light of different wavelengths. This allows the observation of quite active prominences in the H-Alpha band.
Sky-Watcher`s Solis etalon technology allows the Heliostar-76Ha to achieve a 0.5A bandpass without the costly expense and complexity of a second etalon to achieve the same performance. This allows the observer to obtain detailed images of the solar disk right out of the box without any further expense.
The HELIOSTAR-76Ha conforms to and meets the transmission requirements of ISO 12312-2:2015 (Filters for the direct observation of the Sun). Always use in accordance with the instructions and exercise the utmost of caution when viewing the Sun..
Safety Information
Please exercise extreme caution when observing the Sun. Improper usage and practices can result in serious and even permanent eye damage!
Also, the 11.5mm blocking filter in the removable eyepiece diagonal is part of Heliostar`s safety features. Do not use this telescope with any other type of diagonal.
SPECIFICATION
Magnification (with eyepiece supplied): x31.5
Eyepiece Supplied (1.25``): 20mm, 70° Wide Angle
Telescope Focal Length: 630mm (f/8.3)
Primary Aperture: 76mm
Etalon bandwidth:
Tuning method: Pressure tuning
Integrated Sky-Watcher Trifid Tuner and Solis Etalon Technology
Exit opening 11.5mm
11.5mm Block Filter
90° (1.25``) Solar Diagonal
Heliostar Safe Solar Finder
2`` Dual-Speed Crayford Focuser
Tube Rings, Integrated Carrying Handle and 45mm Dovetail Bar with 1/4-20 tripod threads
Supplied with Universal Smartphone Adaptor
Suitable for CCD camera imaging with 1.25`` adaptor and back focus of 58mm or less
Solar Image Size: 6mm
Sky-Watcher SolarQuest Solar Go-To/Tracking Mount Recommended
Safety Compliance Certification: ISO12312-2:2015
OTA Length: 600mm
OTA Weight: 3.8kg

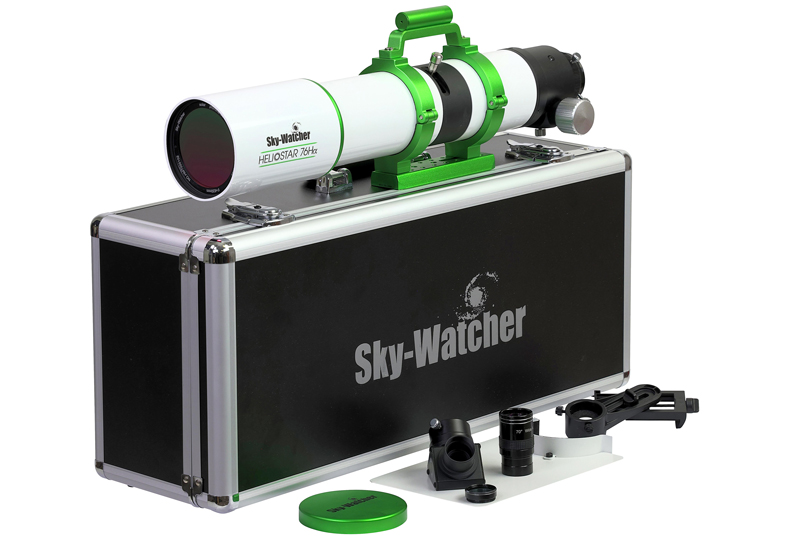

Supplied in Hard Shell Case
