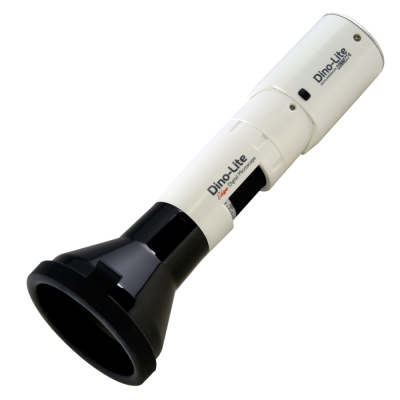

Dino-Lite IriScope Wireless
Price: 1 269.00 EUR / 4 381.60 Lt.
Order
Quantity
The IriScope (MEDL4R) offers a new, fast and easy way to make pictures of eyes. The IriScope has 2x2 LED`s (white/yellow) that illuminate the side of the eye which reduces the reflections in the image as well as the discomfort caused by bright light. The yellow LED`s provide better images of dark irises. The images have a maximum resolution of 1.3 Megapixel.
You can make razor-sharp images of the Iris with the magnification of 10-20 times that allows you to see details that can hardly be seen by the naked eye. Cases of irritation, dirt, insect or unknown object in the eye can be detected with the aid of the IriScope and allow the right diagnosis for further treatment. IriScope pictures can have a resolution of up to 1,3 megapixel and the specially designed front cap can be placed on the eye socket to get the right distance for a perfect picture. The IriScope has its own built-in LED`s with two different colours, white and yellow. The yellow LED`s serve to allow images of darker irises. The LED`s are powered by the direct USB connection which makes batteries superfluous and the IriScope always ready for action.
A big advantage of the IriScope device is that patient and practitioner can look at the screen together, be it a regular computer screen, laptop or Windows tablet. This shows the high mobility of the Dino-Lite IriScope. It goes without saying that the images and video can be stored on any digital media. They can also be stored in a patient file to document the complaint or complaints over time.
Specifications
Lighting
Light/ LED type White/Yellow
Number of LEDs 2+2
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer No
Optics
Magnification 10-20x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
WiFi Yes
Housing
Housing material Composite/plastic housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 95 g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual,
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 Medical Devices Regulation (EU) 2017/745
