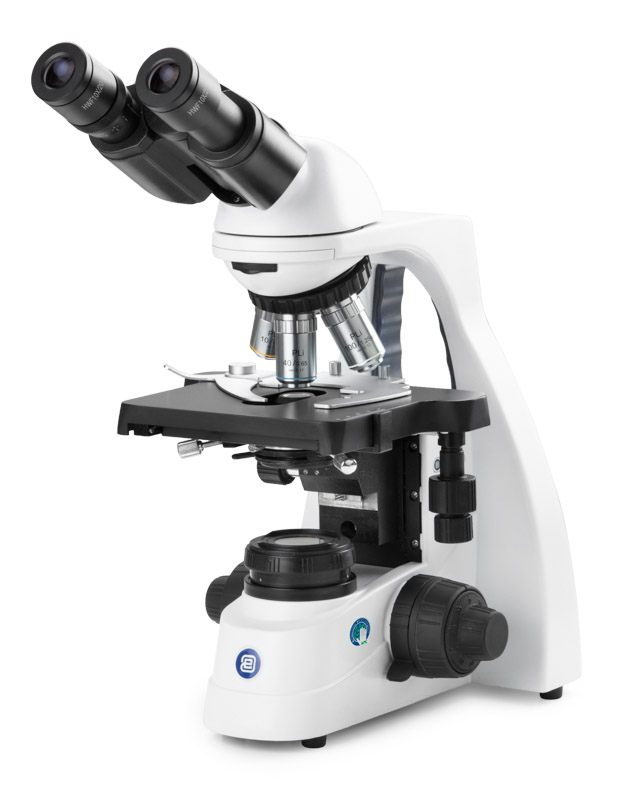

Microscope EUROMEX BS.1152‑PLi, binocular
Price: 1 085.00 EUR / 3 746.29 Lt.
Order
Quantity
Versatile and evolutive!
The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. Apart from excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20 mm eyepieces and objectives for bright field, phase contrast and dark field. The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives.
The design of the bScope is both ergonomic and evolutive. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore providing more comfort for microscopists. Phase contrast and cardioïd mirror dark field models are available. Provided with APL (Anti-bacterial Protection Layer) - a microscope with APL will restrict the growth of microorganisms, including bacteria and mold. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation and easy storage.
Features:
High wide field HWF 10x/20 mm secured eyepieces with 20 mm field of view.
Siedentopf type head, 360 deg rotatable, with 30 deg inclined 23.2 mm diameter tubes

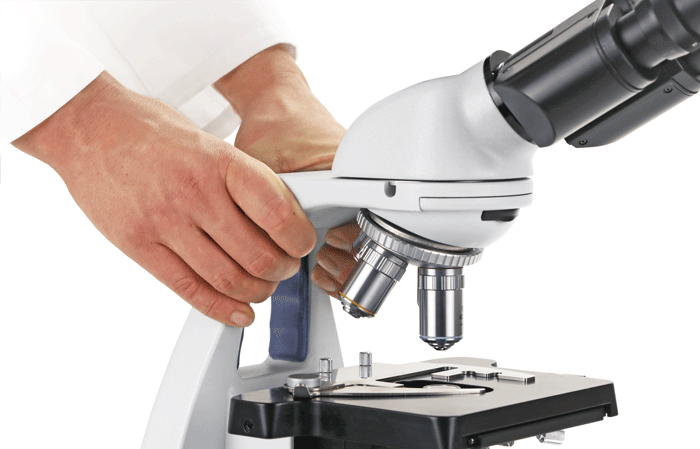

Unique swiveling system of the eyepiece tubes for ergonomic positioning of both tubes in a high (431 mm) and in a low position (377 mm)
The binocular head comes with a 23.2 mm diameter tube and has a fixed light path beam splitter (20:80) and generates an erect image
Plan IOS infinity corrected objectives: 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion
diopter +/- 5 adjustment on left eyepiece
The interpupillary distance is adjustable between 48 to 76 mm
Revolving and reversed ball-beared quintuple nosepiece
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations
Precision 1.11 um, 200 um per rotation, total travel approximately 19 mm
The coarse adjustment is equipped with friction control
Scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
The rackless stage has no protruding parts, enables more smooth movements and is safer in use.
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder
The 3 W adjustable NeoLED diascopic illumination with an internal 100-240 V power supply
The optional rechargeable AA batteries turn the bScope into a cordless system
Package content:
Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil.
