Thermal imaging attachment Liemke Luchs-2
Price: 4 350.00 EUR / 15 019.68 Lt
4 050.00 EUR / 13 983.84 Lt.
Order
Quantity

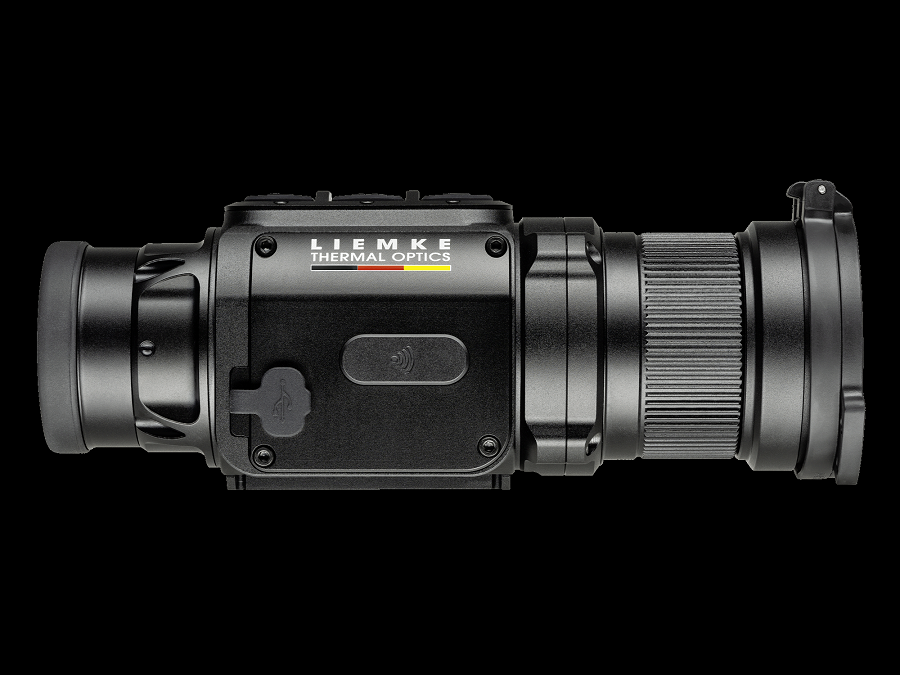

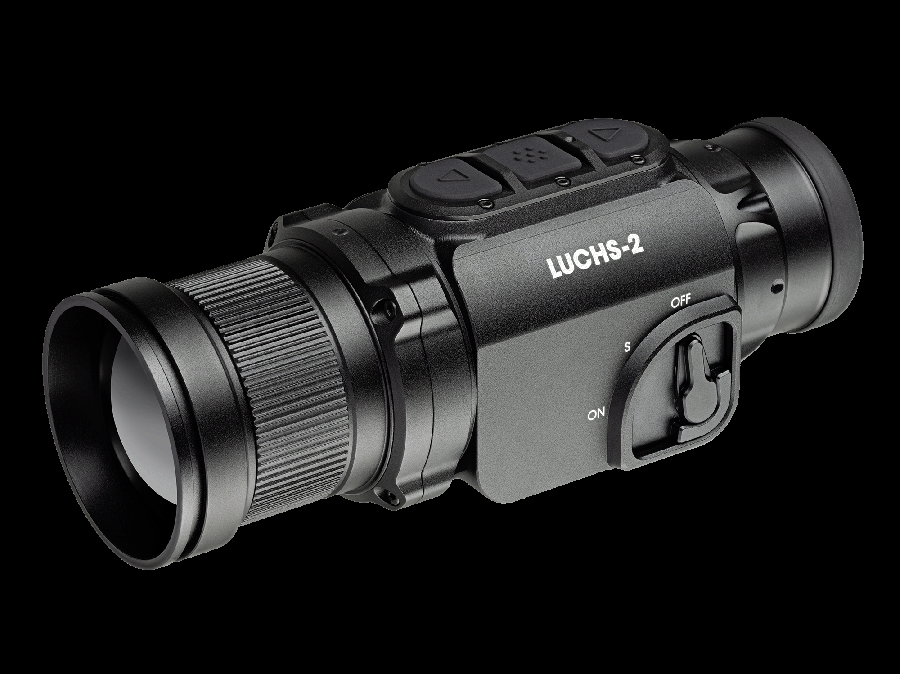

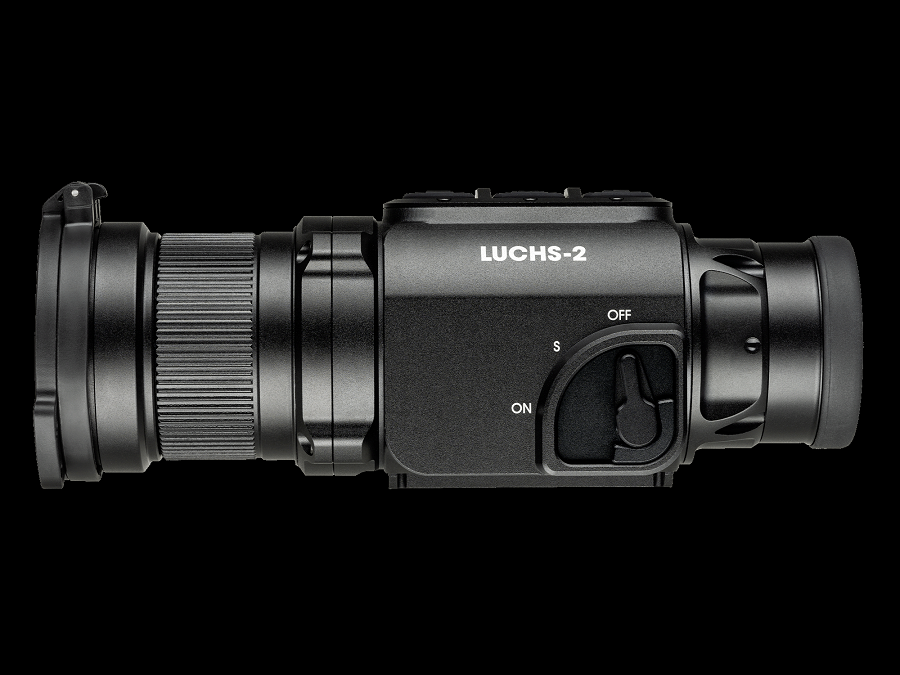

The Luchs-2 is the first choice for long-distance hunting. It offers a resolution of 640 x 512 pixels, 2500 m range, 50 mm lens, a field of view of 15.4 m in width and extreme shock resistance. Equipped with WiFi, 32GB large recorder and different color modes.
The built-in vanadium oxide thermal imaging detector is a high-resolution chip with 640 512 x pixels Resolution with a pixel size of 12 microns. This means that the observer does not miss any details, because heat sources are displayed accurately and precisely, even the fine aspects of the game can be distinguished.
The screen solves 1024 768 x pixels in high definition. The new OLED technology display reproduces colors particularly vividly and with high contrast. In addition, there are no annoying gray veils in areas that do not emit any light, and dark (black) is actually reproduced as black.
The built-in battery has an uptime of 6,5 to 9h and can be recharged with a USB connection. If the operating time is not sufficient, an external USB power bank can also be used.
The device only requires a single initial setup, for all other uses it takes only 5 seconds to turn on. The aiming device does not need to be readjusted to the repeatability the hunter can rely on.
The operating concept is kept extra simple, the settings are self clearing. The robust and compact aluminum alloy housing has even been shock resistance tested to a standard of high-end scopes. The switches and controls are clearly visible and can also be felt with the hands, which means that the user is able to get by not only in the darkness but also with gloves.
During production, care was also taken to minimize mechanical noise as much as possible - special emphasis was placed on a quiet shutter.
The measured values can be transferred to a PC via the smartphone app up to 4 cell phones and/or tablets can be connected to the device to transmit the observation live. In addition, a built-in VCR can record photos and video clips. With 32 gigabytes, the memory offers plenty of space for pictures and hours of video recordings.
Technical data:
Connectivity: USB-C
Detector resolution: 640x 512 pixels (VOx)
Resolution monitor: 1024 x 768 pixels (OLED)
Frame rate: 50 Hz
Color modes: White hot / black hot / extra dark / red hot / rainbow
Field of View (mRad): 0.24
Weight: 625 g
Click value: 1.93 cm per 100 m / 0.6 MOA (1 click)
Click value: +- 60 cm per 100 m / +- 20 MOA (total)
Dimensions: 179 x 64 x 69 mm
Close range: 5 m
Objective lens: 50mm/F1.0
Pixel size: 12 um (pitch)
Range of detection: 2500 m (human)
Recoil strength: 1.000 shocks with 1.000g acceleration
Protection class: IP67
Field of View: 8.5 x 6.8 degrees
Field of View at 100 m: 15.40 x 12.30 m
Spectral range: 8 ? 14 um
Power supply: internal battery (9h)
Temperature sensitivity: 50 mK (NETD)
Magnification: 1x (optical)
Magnification: 1-2x (digital)
VCR: Yes (32GB)
WiFi: Yes
Delivery contents:
Liemke Lynx-2
USB-C cable
Operating instructions
