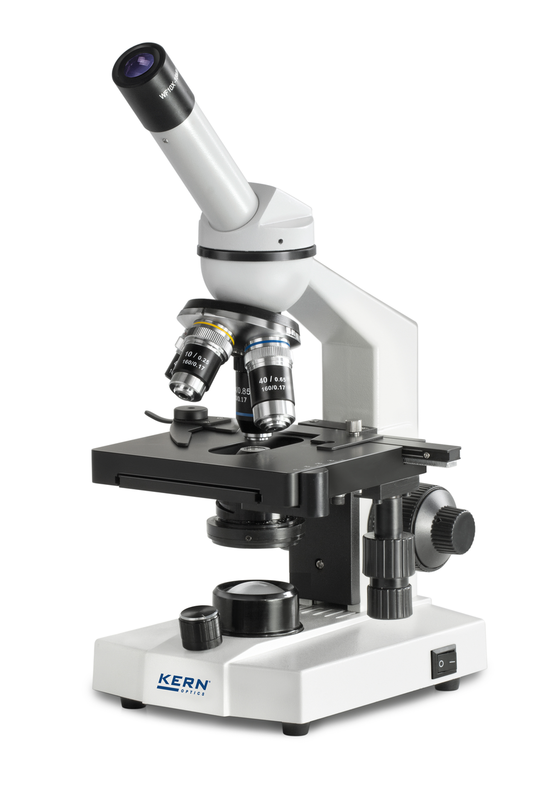

Microscope KERN OBS 40-400x mono 105

Price: 309.00 EUR / 1 066.92 Lt.

Order

The KERN OBS-1 range is a solid and simple school microscope range, which is easy to use due to its intuitive control elements
The infinitely dimmable 0.5W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use is also no problem through the use of rechargeable batteries
The OBS 104, OBS 105 and OBS 106 models have a 1.25 Abbe condenser which is height-adjustable and can therefore be focused and has an aperture diaphragm, which ensures the very best concentration of light
To focus the object, all models have a coarse and fine focusing knob on both sides. The mechanical angle table enables you to work with the samples and move them rapidly
A large selection of different eyepieces and objectives is also available
Scope of application

Primary school, secondary school, training, hobby use

Applications/Samples

Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)

Technical data

Finite optical system (DIN)
Eyepiece: 10x/18 (Widefield) Lens type: Achromatic

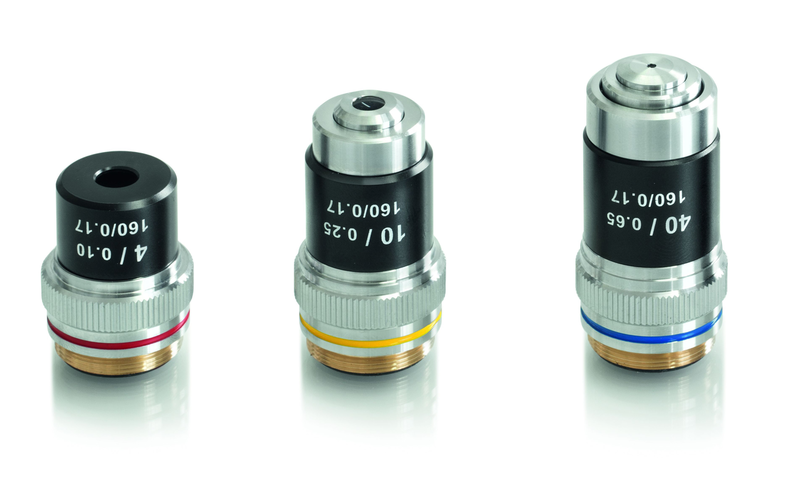

Objective 1: 4?/0.10 W.D. 18.0 mm
Objective 2: 10?/0.25 W.D. 7.0 mm
Objective 3: 40?/0.65 (spring-loaded) W.D. 0.53 mm
Magnification: 40-400 (40, 100, 400)
Condensor: Abbe type 1.25 N.A. height-adjustable with an Iris diaphragm
Lamp type: LED (0.5W)
4-fold lens revolving unit
Tube: 45 degree eyepiece tube, angled/360 degree revolving
Dioptre compensation (both sides) (for binocular models)
Overall dimensions WxDxH 130x300x310 mm
Net weight approx. 3200 g
