Microscope Genetic VideoPrice: 679.00 EUR / 2 344.45 Lt. Order Quantity

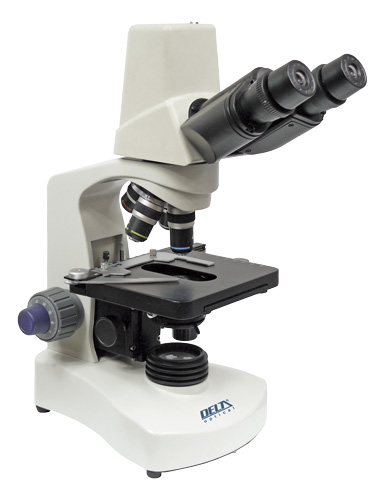

ergonomic and handy microscope with a built-in digital video camera for computer processing of observed images and presentation of microscope
preparations to larger groups of learners
valued by users in secondary schools, student laboratories, and other laboratories performing routine testing
offers a wonderful image quality magnified from 40x to 1000x
equipped with a comfortable binocular Siedentopf head with adjustable eye distance movable two-preparations stage with measurement scale
adjustable LED illuminator prevents overheating, which enables performing observations for many hours without a necessity of shuting the microscope down for cooling
excellent opportunity to extend by adding sets fot different observation techniques: dark field, polarization and phase contrast
image processing software included in set
Technical specification and equipment:
built-in digital video camera
computer connection via USB port
optical tube length: 160 mm
binocular head angle: 30º
quatro revolving nose-piece
achromatic objectives 4x, 10x, 40x, 100x (S)(O)
2x eyepiece Plan 10x, field of view 18 mm
focusing: fine adjustment knob and coarse adjustment knob
1.25 NA Abby condenser
flat stage with a scale, stage clips, and two knobs for adjustments in two directions (XY); stage dimensions: 132 mm x 132 mm, adjustment range XY: 75 mm x 40 mm
the stage has a blocking mechanism helping to avoid accidental crushing the preparation
illumination: LED 3W
filters: green, blue
left eyepiece diopter adjustment: +/- 5D
operating temperature range: od 0ºC do +40ºC
|
