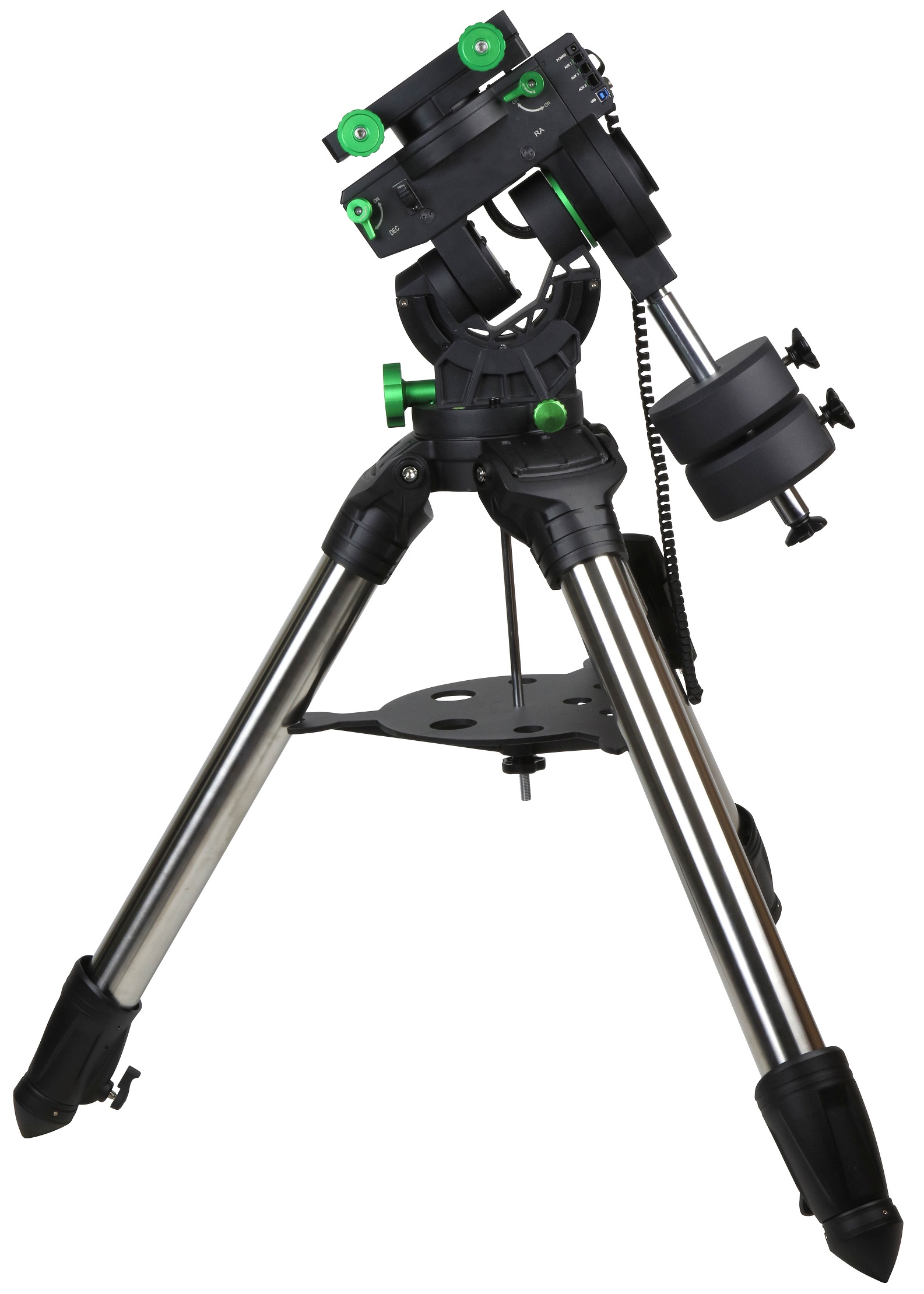

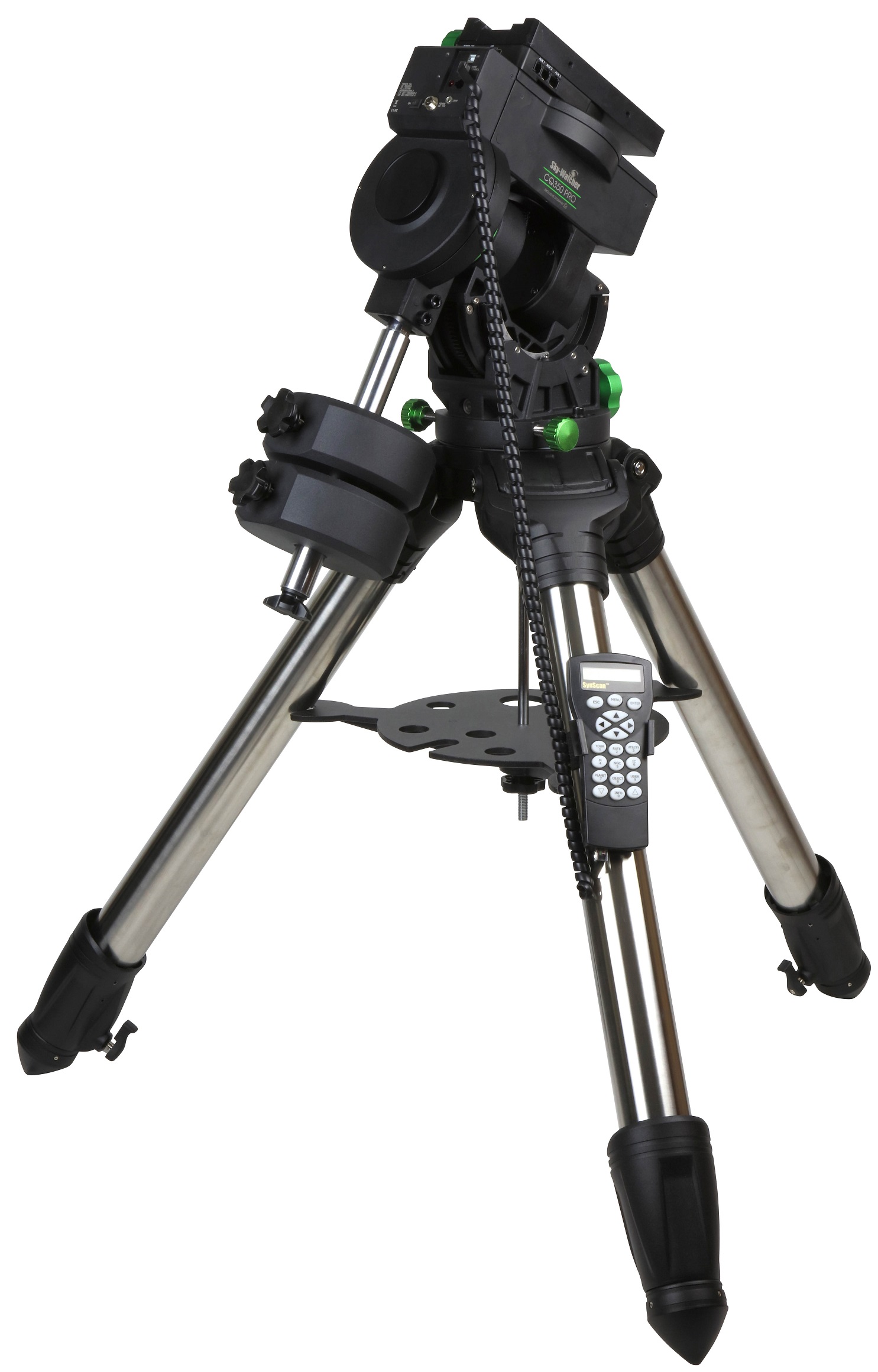

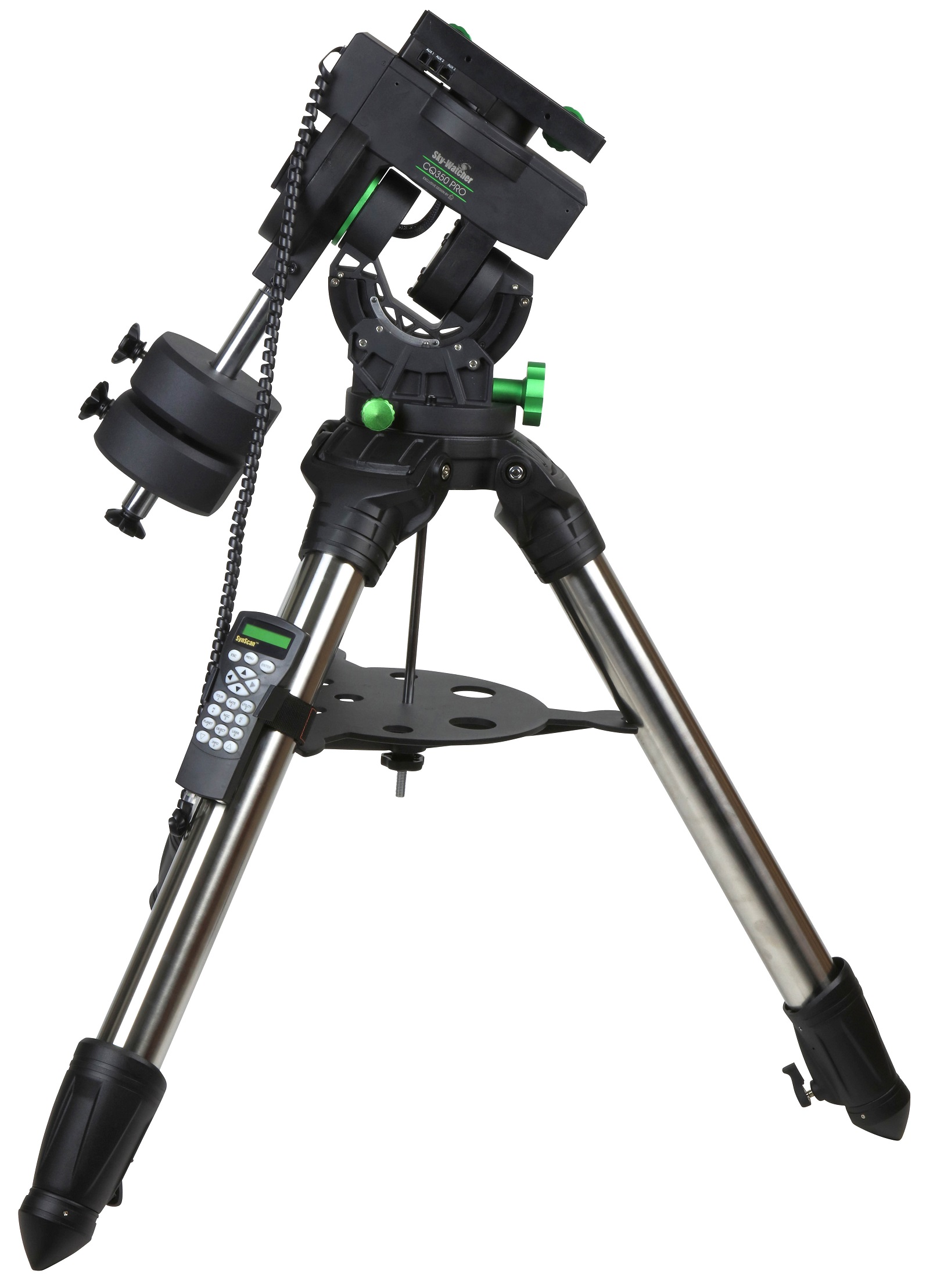

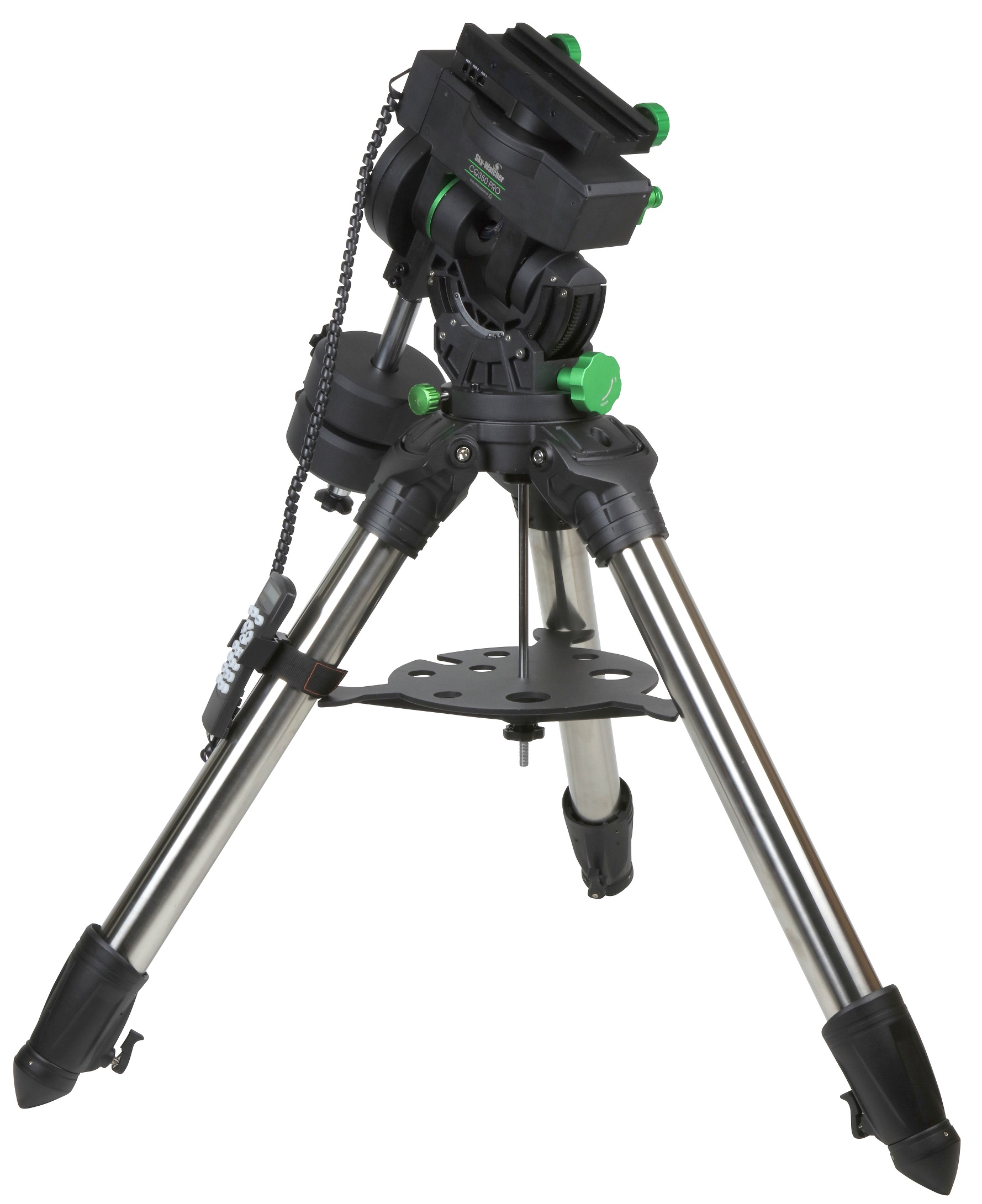

Mount SkyWatcher CQ350 PRO SYNSCAN GoTo
Price: 3 859.00 EUR / 13 324.36 Lt.
Order
Quantity
With the CQ350, Sky-Watcher presents a mount that sits between the EQ6-R and the EQ8-R . It can be used for mobile astrophotography, garden observatories or club observatories. It is therefore available both with and without a tripod.
The equatorial CQ350 Pro has the well-established SynScan computer control with 42,900 objects in the integrated database. These can be easily accessed using the Messier, NGC and other catalog numbers. With an optional WiFi dongle, it is possible to control the mount via an app with iOS or Android devices.
The mount was developed for the demanding astrophotographer , its maximum load is 35kg. The combined dovetail bar clamp for 45 and 75mm dovetail bars allows a large selection of telescope tubes and other accessories to be accommodated.
The quietly working mount is moved in both axes via belt drives by stepper motors (encoder resolution: 55,193,600 counts/rev., approx. 0.023 arc-second). The smooth running and the high panning speed make this mount very interesting for observatories with public tours.
The scope of delivery includes two counterweights, each weighing 10 kg. An external polar finder can optionally be connected for quick setup. The CQ350 mount is compatible with the EQ8 column stand.
Specification:
Payload Capacity (excl. counterweights): 35kg (Rating for imaging use)
Latitude Adjustment Range: 10-72 degrees
Azimuth Adjustment Range: +/- 15 degrees
Mount Head Weight (excl. counterweights) 15kg, Dimensions 434mm x 176mm x 323mm
2.75-inch Diameter Stainless Steel Tripod, Weight: 15.7kg, Height 775mm-1080mm
Counterweights Supplied: 2 x 10kg
Power Requirement: DC11~16V 2A (Higher voltage preferred), 55W
Motors: Hybrid High Precision Stepper Motors (Belt Driven)
R.A. Worm Wheel Teeth: 308, DEC Worm Wheel Teeth: 288
R.A. Gear Diameter 155mm
Resolution : 55,193,600 Counts/Rev., approx. 0.023 arc-second
Maximum Slewing Speed: 4 degrees per second
Tracking Rates: Sidereal rate, solar rate, lunar rate
Auto-Guiding Speeds: 0.125X, 0.25X, 0.5X, 0.75X & 1X
Optional Polarscope available separately
Built-in Cable Management: Yes
Automatic Identification Initial Position Function
Dual-fit Saddle for 45mm and 75mm Dovetail Bars
Ports: 4 x USB Ports, 1 x Shutter Release Port, 1 x Power Input Port, 3 x Power Output Ports, 1 x Hand controller Port & 1 x Autoguider Port
Auto Home Function
Hand Controller Supplied: Synscan with 42,900+ Object Database
Synscan Celestial Object Catalogue: Messier, NGC, IC, SAO, Caldwell, Double-Star, Variable Star, Named Star, Planets
Control also possible with Synscan Pro Application for Windows via USB, Synscan Pro App for iOS and Android with optional Wi-Fi Dongle
