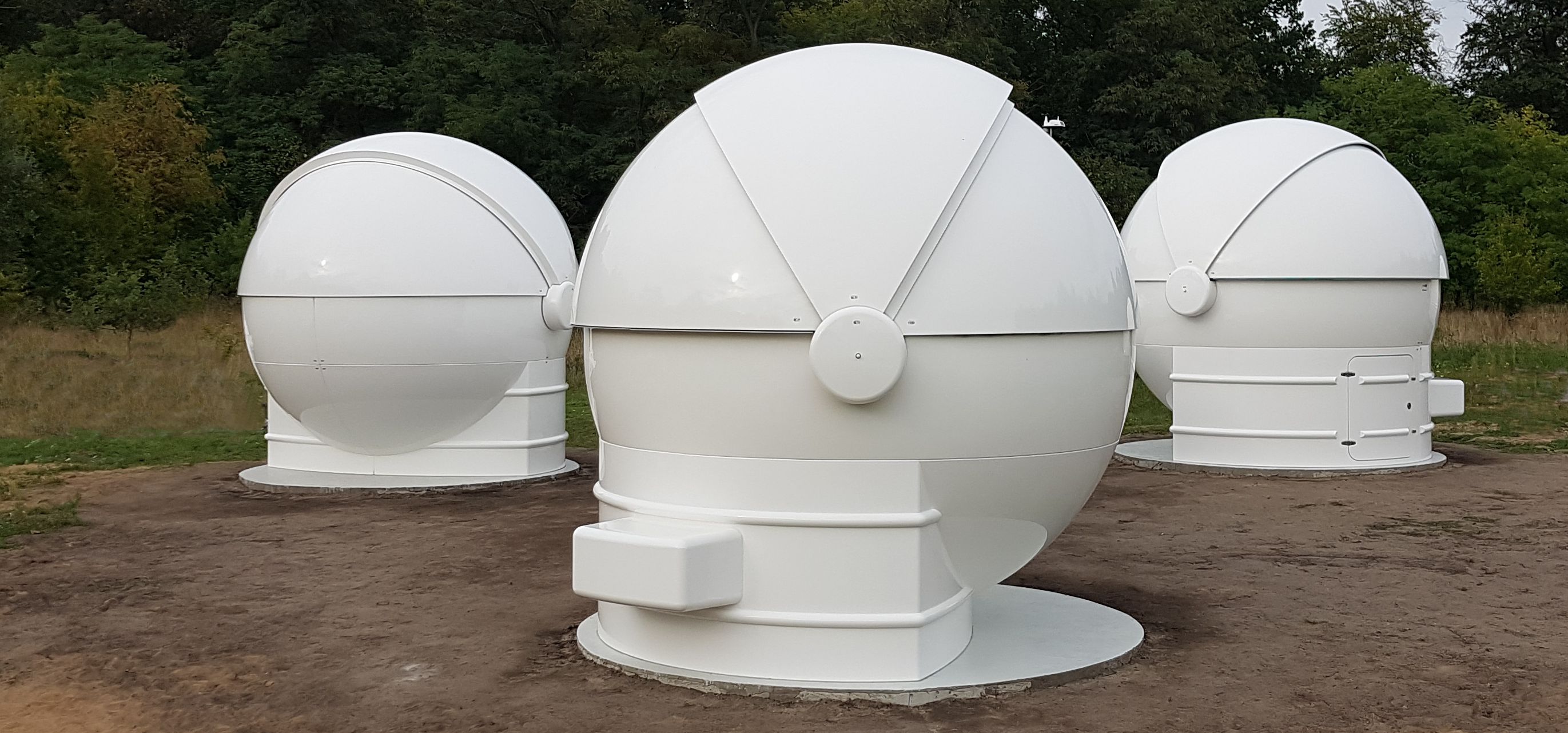

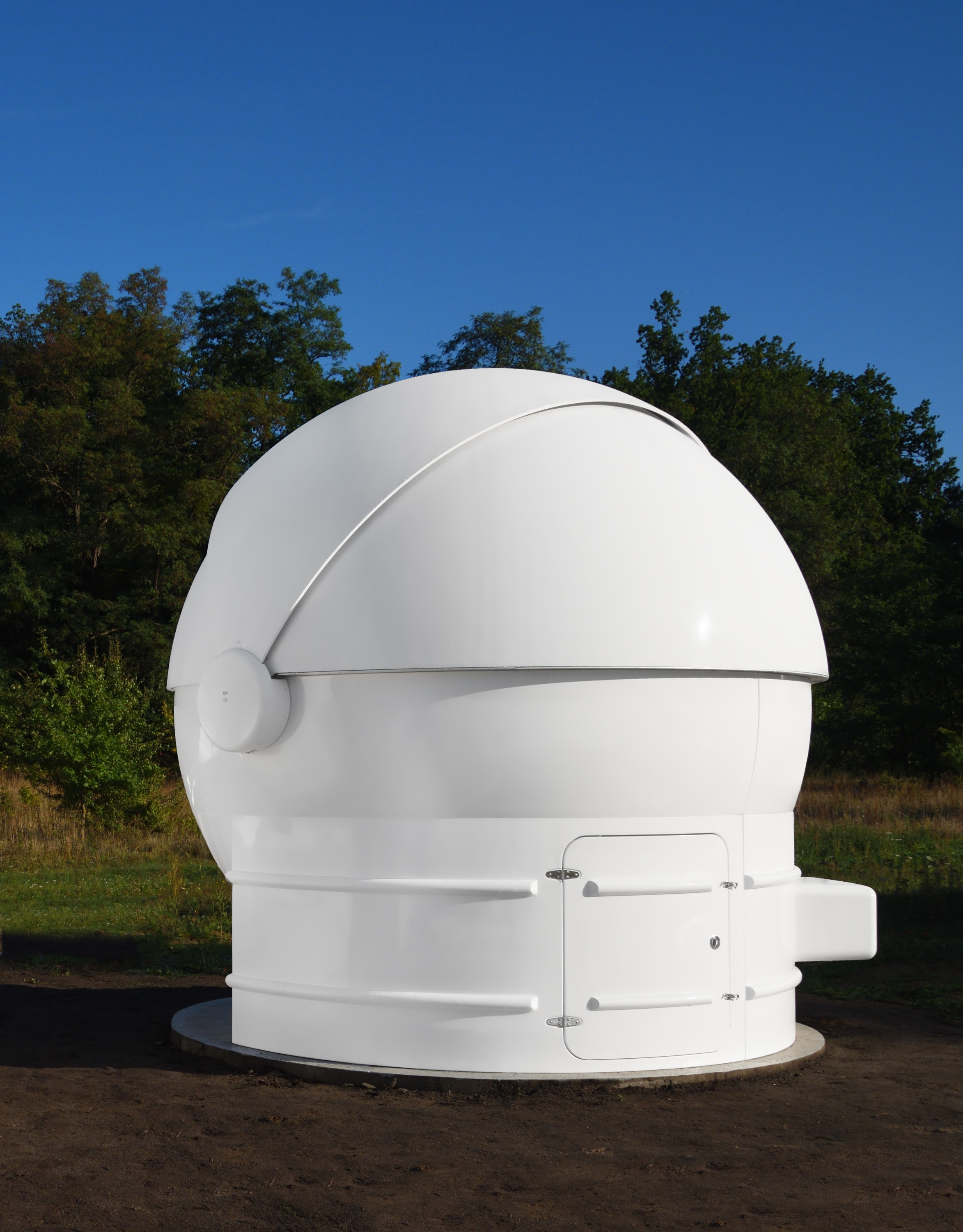

Astronomical dome 3 m Clamshell

Price: contacts us for price

Astronomical dome Clamshell 3M

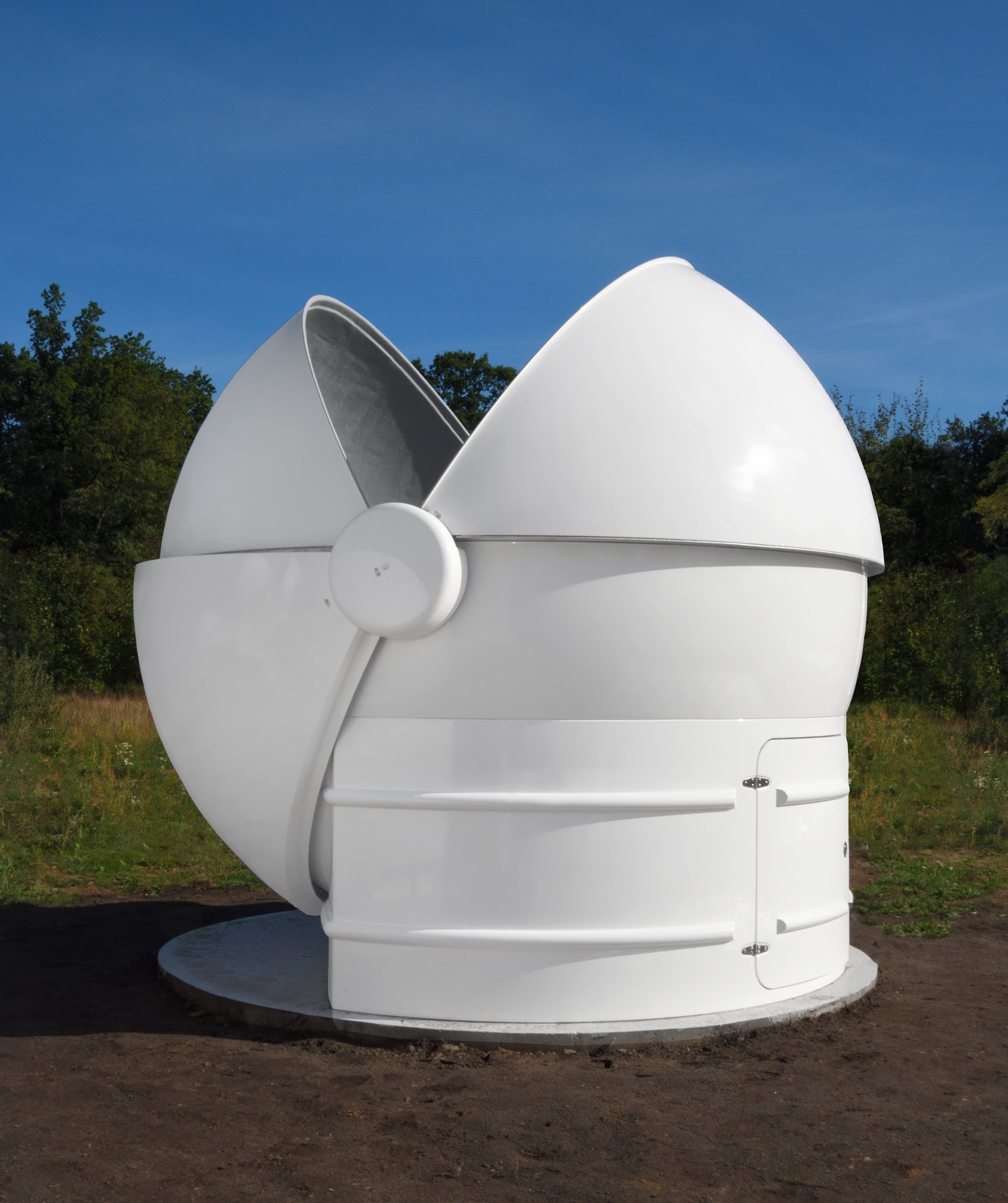

Due to the lack of synchronization of the dome`s shutter with the telescope, clamshell-type domes are chosen by professional astronomers for tracking satellites, space debris or quick sky surveys. The dome design protects the telescope from weather conditions. The fast shutter drive allows almost immediate observation. A special feature of the dome is the ability to open only selected shutter, which allows additional protection of the telescope against strong winds. All domes we manufacture are assembled in our factory, and then, after dismantling, carefully prepared for transport. We encourage you to read the assembly instructions and photo gallery taken during the installation of the dome.

Basic parameters

diameter: 3.0 m

heigh: 3.1 m

weight: 300 kg

number of shutters: 3

opening time: 80s

drive: six engines 250W

automation: ScopeDome Arduino Card

software: ScopeDome Arduino Driver, ASCOM, Windows 10

equipment bay: 77 x 35 x39 cm

door: 77 x 59 cm

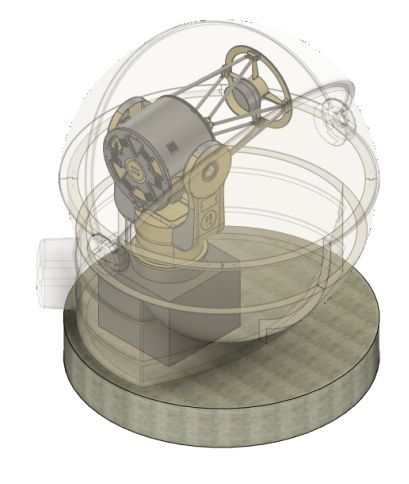

dedicated telescope: up to 700 mm

?
